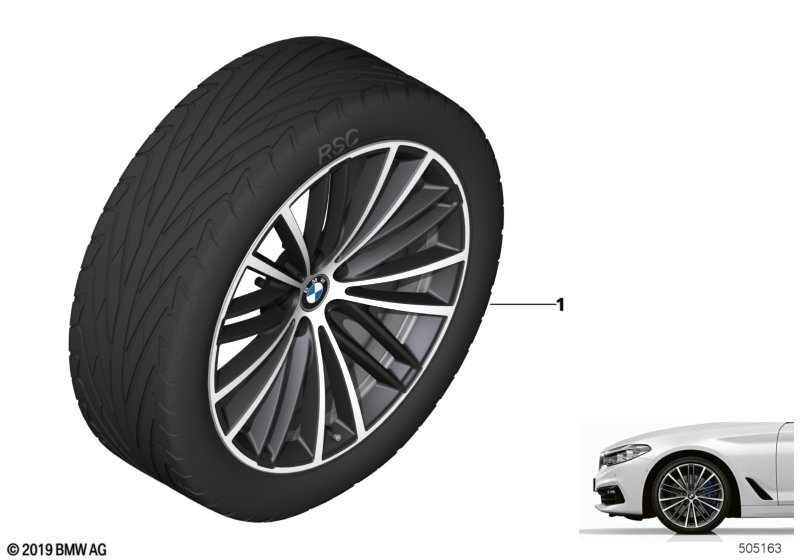

BMW LA wheel V-spoke 635 - 19" for BMW 5 Series G31 Touring 540dX (2020)
This BMW LA wheel V-spoke 635 - 19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan |
L807A=No |
||||||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/40R19 98Y Rear axle 275/35R19 100Y Michelin Pilot Sport 4 ZP Disc wheel Night Gold |
S2VBA=Yes |
|||||||||
| 01 | RDC complete wheel Sommer Night Gold | 1 | 36115A2AF10 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/40R19 98Y Rear axle 275/35R19 100Y Pirelli Cinturato P7 r-f Disc wheel Orbit grey diamond polished |
S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 1 | 36112473103 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
