Retrofit carbon package for BMW 8 Series F92 M8 Coupé M8 (2025)

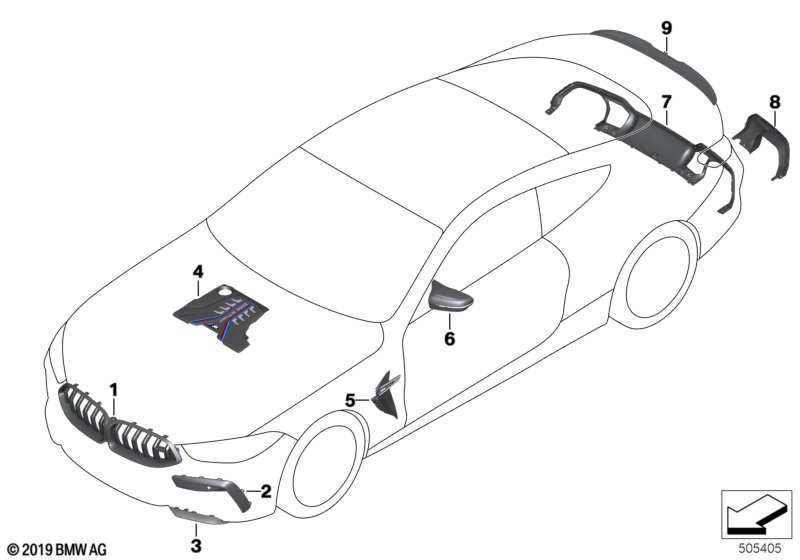

This Retrofit carbon package technical drawing provides a detailed breakdown of the assembly for the 8 Series F92 M8 Coupé M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ATTENTION! In case of a retrofit of the rear lower bumper cover for exhaust end pipe trim, the smart opener function is omitted. |
|||||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 01 | Grill front | M | 1 | 51138077299 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and M Shadow Line with expanded scope |
S5DNA=Yes S7M9A=No |
|||||||||
| 01 | Grill front | M | 1 | 51138077305 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 02 | Grill trim left with PDC | -M-/PDC/CFK | 1 | 51118077577 | Shop at ECS Tuning | |||||
| 02 | Trim grill, right with PDC | -M-/PDC/CFK | 1 | 51118077578 | Shop at ECS Tuning | |||||
| 03 | Pressure lip, front left | -M- / CFK | 1 | 51118074889 | Shop at ECS Tuning | |||||
| 03 | Pressure lip front right | -M- / CFK | 1 | 51118074890 | Shop at ECS Tuning | |||||
| For vehicles with M carbon engine cover |
S1MDA=No |
|||||||||
| 04 | Engine cover CFRP | 1 | 11148058667 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 05 | Air humidifier, left | M8 / CFK | 1 | 51138074873 | Shop at ECS Tuning | |||||
| 05 | Air humidifier, right | M8 / CFK | 1 | 51138074874 | Shop at ECS Tuning | |||||
| 06 | Outside mirror shroud, Carbon, LHD left | 1 | 51168043647 | Shop at ECS Tuning | ||||||
| 06 | Outside mirror shroud, Carbon, LHD right | 1 | 51168043648 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon ATTENTION! In case of a retrofit of the rear lower bumper cover for exhaust end pipe trim, the smart opener function is omitted. |
S71CA=No |
|||||||||
| 07 | Trim panel, bumper, rear, bottom | -M- CFK | 1 | 51128074869 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon |
S71CA=No |
|||||||||
| 08 | Trim, exhaust end pipe, left | -M- CFK | 1 | 51128076175 | Shop at ECS Tuning | |||||
| 08 | Trim, exhaust end pipe, right | -M- CFK | 1 | 51128076176 | Shop at ECS Tuning | |||||
| 09 | Rear spoiler, carbon | CFK | 1 | 51628083397 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive tape rear spoiler | CFK | 1 | 51628084573 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
