Conversion, tail light, LCI, Blackline for BMW 4 Series F32 430d (2017)

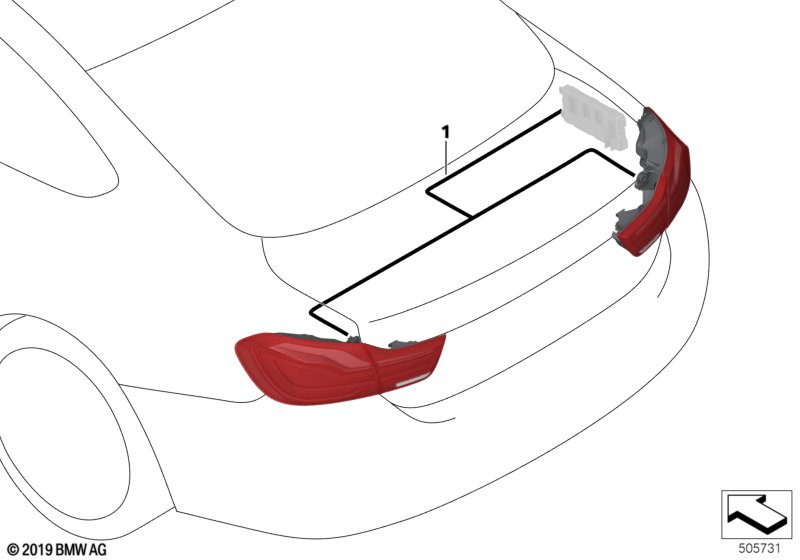

This Conversion, tail light, LCI, Blackline technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 430d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Retrofit with wiring harness and tail lights. Retrofit with installation instructions 01 29 2 456 074 only. |
|||||||||
| 01 | Wiring trunk lid | 1 | 61126830397 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Rear light in the side panel, left | BLACK LINE | 1 | 63219491575 | Shop at ECS Tuning | |||||
| -- | Rear light in the side panel, right | BLACK LINE | 1 | 63219491576 | Shop at ECS Tuning | |||||
| -- | Rear light in trunk lid, left | BLACK LINE | 1 | 63219491583 | Shop at ECS Tuning | |||||
| -- | Rear light in trunk lid, right | BLACK LINE | 1 | 63219491584 | Shop at ECS Tuning | |||||
| -- | Trim, drip rail, left | 1 | 51497474487 | Shop at ECS Tuning | ||||||
| -- | Trim, drip rail, right | 1 | 51497474488 | Shop at ECS Tuning | ||||||
| -- | Installation instructions | 1 | 01292456074 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 430d Conversion, tail light, LCI, Blackline?
- This technical diagram illustrates the Conversion, tail light, LCI, Blackline within the Retrofitting / conversion / accessories group for the 4 Series F32 430d produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Wiring trunk lid (Part #61126830397).
- Which models use the hardware listed in this Conversion, tail light, LCI, Blackline?
- The hardware and components featured in the Conversion, tail light, LCI, Blackline are specific to the 4 Series F32 430d produced during 2017. These technical specifications ensure that parts like the Wiring trunk lid (61126830397) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Conversion, tail light, LCI, Blackline assembly?
- Each item in the Conversion, tail light, LCI, Blackline corresponds to the numbered list below the illustration. For the 4 Series F32 430d, you can identify the Wiring trunk lid by locating its position on the schematic, which then links to the official BMW part number 61126830397 for the Retrofitting / conversion / accessories section.
