Retrofit high-gloss Shadow Line for BMW 1 Series F40 120dX (2023)

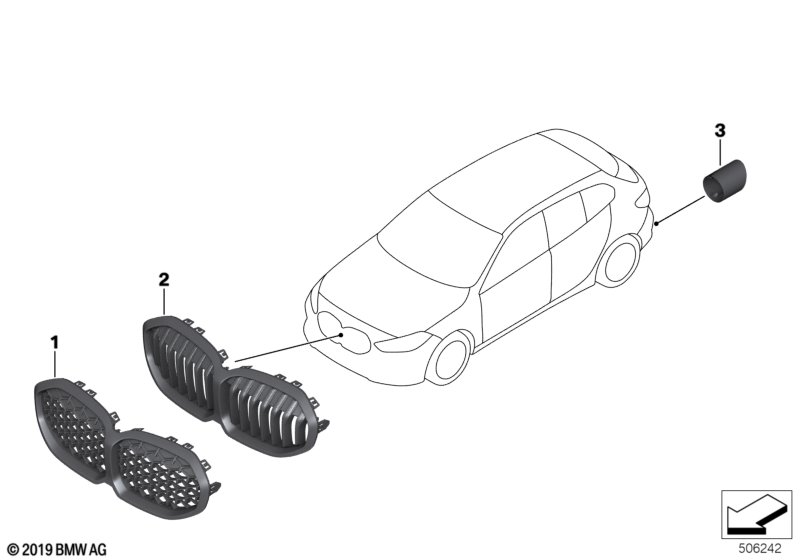

This Retrofit high-gloss Shadow Line technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ATTENTION! This retrofit can only be installed in vehicles WITHOUT air flap control! |
||||||||||
| 01 | Grill front | MPA SHADOWLINE | 1 | 51138080490 | ENDED | Shop at ECS Tuning | ||||
| 02 | Grill front | SHADOWLINE | 1 | 51138080489 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tailpipe tip, black chrome | D=90MM | 2 | 18309489054 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
