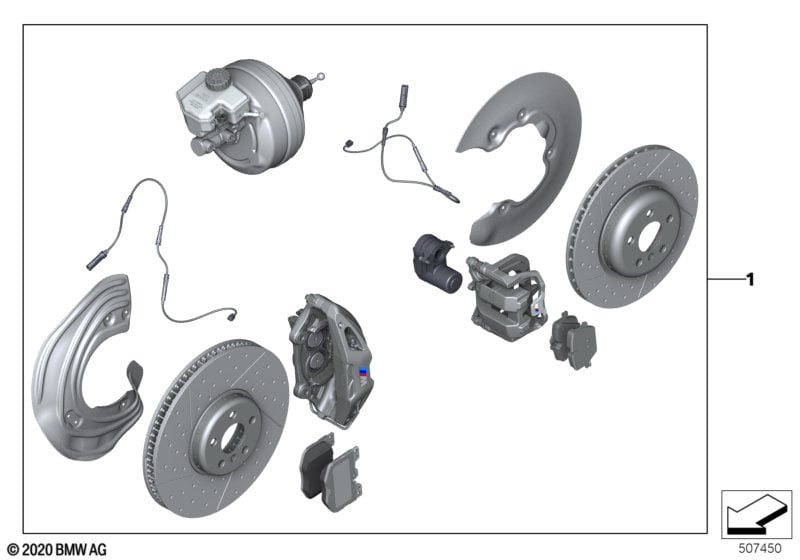

Set of M Performance brakes front/rear for BMW 3 Series G20 Sedan 320i (2022)
This Set of M Performance brakes front/rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on race-track and not for use on public roads according to the relevant retrofitting regulation. For vehicles with M Sport brakes and M SPORT BRAKE, DARK BLUE METALLIC and M SPORT BRAKE, RED HIGH-GLOSS |
S2NHA=No S3M1A=No S3M2A=No |
||||||||
| For vehicles with Energy recovery system |
S1CEA=No |
|||||||||
| 01 | Retrofit kit for Sport brakes, red | 18" M PERF. | 1 | 09/2022 | 34112458884 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit Sport brake red | 18" M PERF. | 1 | 34108857048 | Shop at ECS Tuning | |||||
| For vehicles with Energy recovery system |
S1CEA=Yes |
|||||||||
| 01 | Retrofit kit Sport brake red | 18" M PERF. | 1 | 34108857058 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
