Retrofit, M aerodynamic kit for BMW 3 Series G20 Sedan 330i (2022)

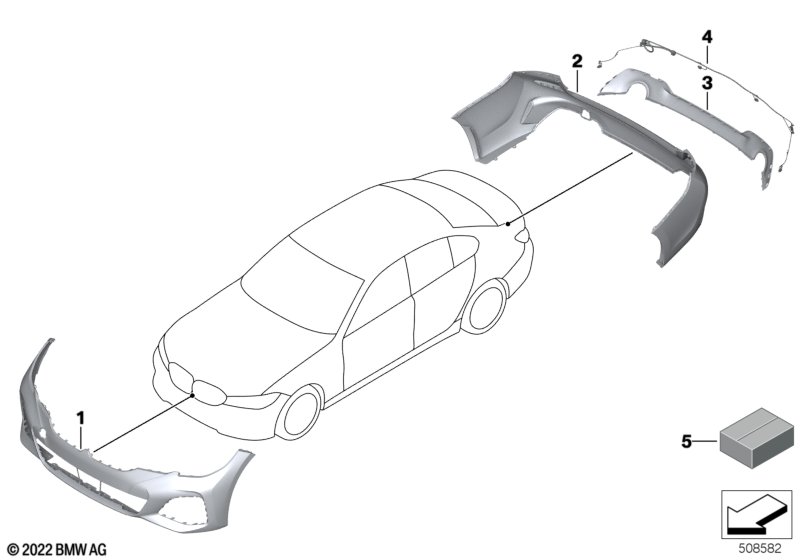

This Retrofit, M aerodynamic kit technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
||||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC/PMA | 1 | 51118099896 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | M | 1 | 51118099894 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | M/PDC | 1 | 51118099895 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC/PMA | 1 | 51128099905 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA | 1 | 51128099903 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 02 | Bumper trim panel, rear | MSP/MPA PDC | 1 | 51128099904 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51125A58A00 | Shop at ECS Tuning | |||||
| 03 | Trim panel, bumper, rear, bottom | MSP | 1 | 51128069390 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330i Retrofit, M aerodynamic kit?
- This technical diagram illustrates the Retrofit, M aerodynamic kit within the Retrofitting / conversion / accessories group for the 3 Series G20 Sedan 330i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Trim cover, bumper, primed, front (Part #51118099896).
- Which models use the hardware listed in this Retrofit, M aerodynamic kit?
- The hardware and components featured in the Retrofit, M aerodynamic kit are specific to the 3 Series G20 Sedan 330i produced during 2022. These technical specifications ensure that parts like the Trim cover, bumper, primed, front (51118099896) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, M aerodynamic kit assembly?
- Each item in the Retrofit, M aerodynamic kit corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330i, you can identify the Trim cover, bumper, primed, front by locating its position on the schematic, which then links to the official BMW part number 51118099896 for the Retrofitting / conversion / accessories section.
