Retrofit kit, rr light, facelift for BMW MINI Countryman F60 Cooper (2020)

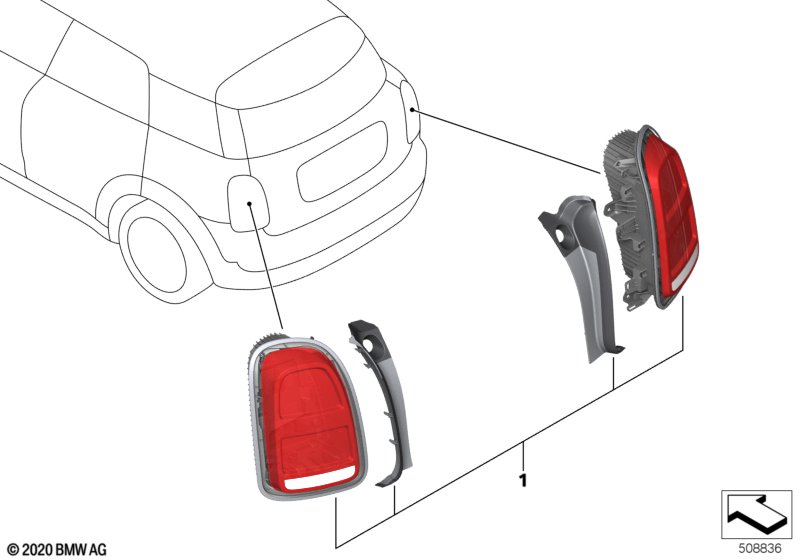

This Retrofit kit, rr light, facelift technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rr light, facelift | UNIONJACK BLACK | 1 | 07/2020 | 63135A26BF0 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable tie | L=200MM/B=3,6MM | 15 | 07/2020 | 61131367599 | $0.43 | Shop at ECS Tuning | |||
| -- | Cable black-violet | 0,75MM? | 4 | 07/2020 | 61131391709 | $1.58 | Shop at ECS Tuning | |||
| -- | Insulation housing, fan connector | 9 POL. | 2 | 07/2020 | 61131393721 | $0.37 | Shop at ECS Tuning | |||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 07/2020 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| -- | Plug terminal black | 2 POL. | 1 | 07/2020 | 61131393742 | $2.55 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | 2 | 07/2020 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
| -- | Cable blue-yellow | 0,75MM² | 6 | 07/2020 | 61126908722 | $1.45 | Shop at ECS Tuning | |||
| -- | Terminal socket MCON 1.2 ELA | 0,5-0,75MM² AG | 2 | 07/2020 | 12527545858 | $0.50 | Shop at ECS Tuning | |||
