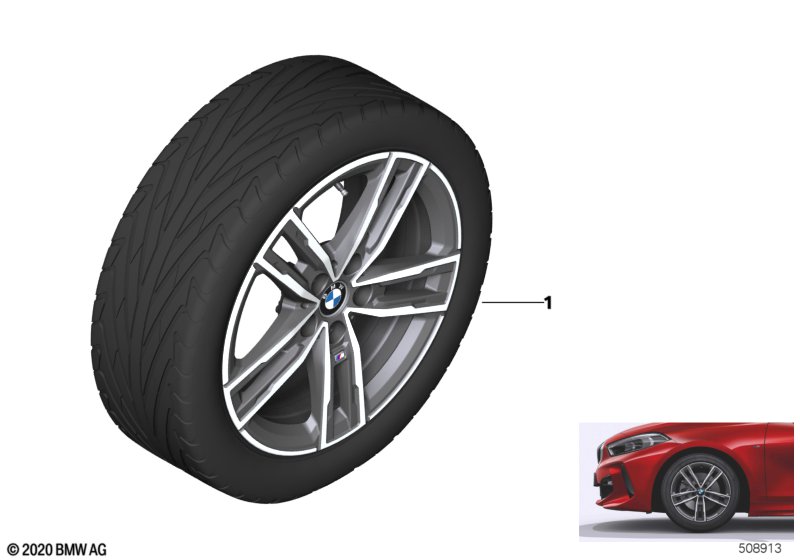

BMW LA wheel M double spoke 550M - 17" for BMW 1 Series F40 118d (2024)
This BMW LA wheel M double spoke 550M - 17" technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | F40 18" MPP | X | 34112450159 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and M SPORT BRAKE, RED HIGH-GLOSS Standard tires without emergency running properties Michelin Primacy 4 |
L807A=No S258A=Yes S2NHA=No S2VBA=Yes S3M2A=No |
|||||||||
| 01 | RDC Complete wheel set,summer Ferricgrey | 225/45R17 94Y | 1 | 36115A07291 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and M SPORT BRAKE, RED HIGH-GLOSS Standard tires without emergency running properties Michelin Primacy 4 |
L807A=No S258A=No S2NHA=No S2VBA=Yes S3M2A=No |
|||||||||
| 01 | RDC Complete wheel set,summer Ferricgrey | 225/45R17 94Y | 1 | 36115A07291 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
