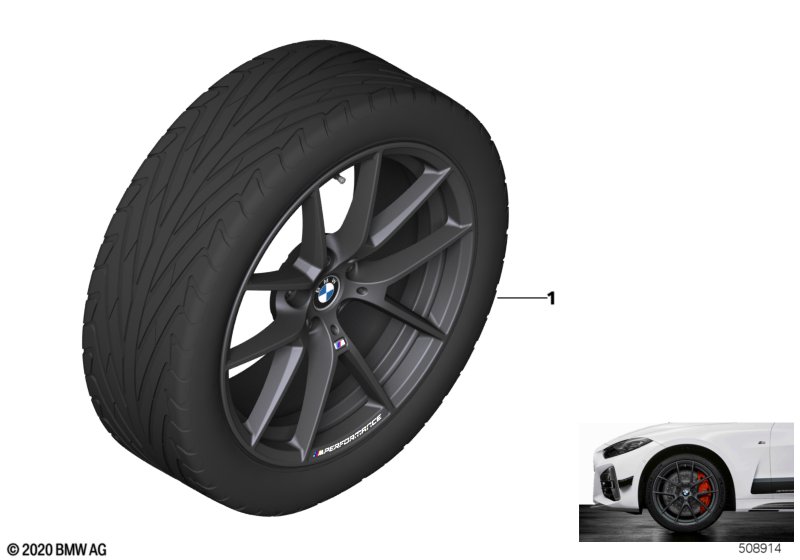

BMW LA wheel M Perf. Y-spoke 898M - 19" for BMW 3 Series G20 Sedan 330e (2019)
This BMW LA wheel M Perf. Y-spoke 898M - 19" technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and Tire pressure display |
L807A=No S2VBA=Yes |
||||||||
| For vehicles with CONTROL DSC Runflat tires with emergency running properties Mixed tyres Vorderachse 225/40R19 93Y Hinterachse 255/35R19 96Y Pirelli P-Zero r-f |
S8WEA=No |
|||||||||
| 01 | TPM wheel w/tire set summer Gunmetal Gy | 1 | 36115A4FFD9 | Shop at ECS Tuning | ||||||
