Retrofit high-gloss Shadow Line for BMW 3 Series G21 Touring 330d (2022)

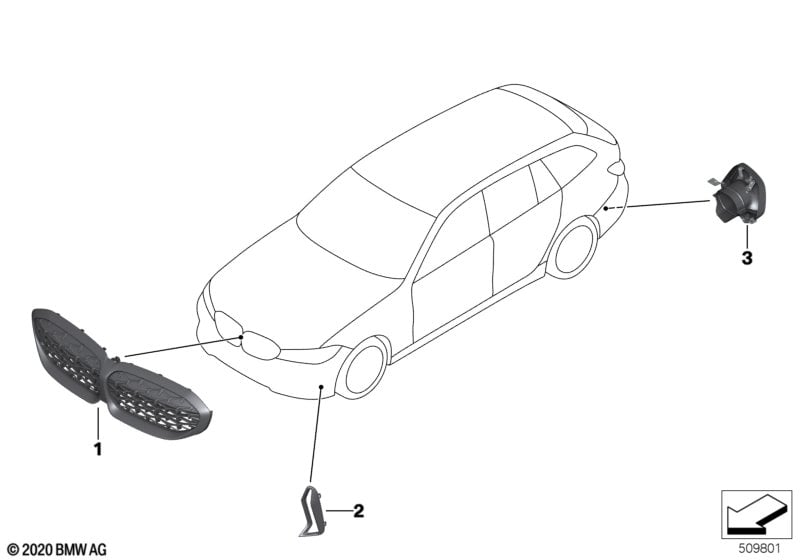

This Retrofit high-gloss Shadow Line technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
||||||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 01 | Grill front | SHADOW-LINE | 1 | 51138072085 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 01 | Grill front | SHADOW-LINE | 1 | 51138072086 | Shop at ECS Tuning | |||||
