Retrofit kit trailer coupling detachable for BMW 3 Series G20 Sedan LCI 320d (2025)

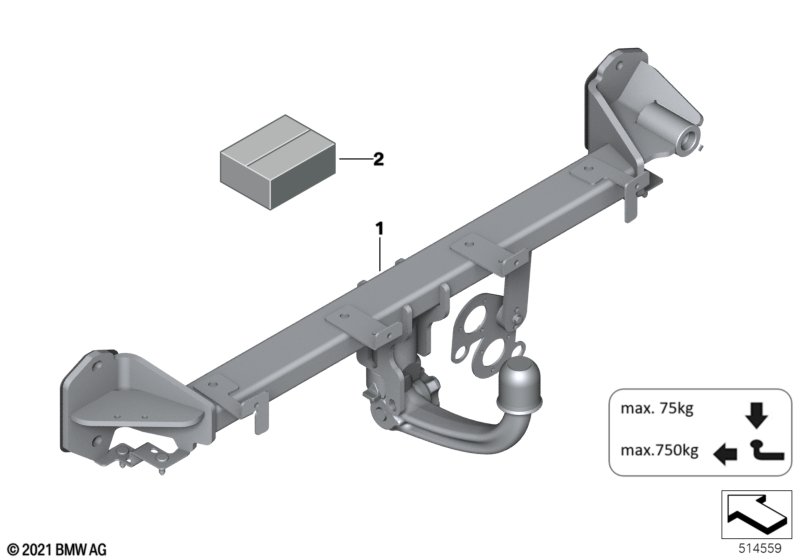

This Retrofit kit trailer coupling detachable technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Multiple installation instructions can be displayed. The correct ones can be identified based on the part numbers and trailer hitch variant. Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. The trailer hitch is limited to the following loads: Trailer load 750 kg Drawbar nose weight 75 kg |
|||||||||
| 01 | Kit trailer hitch removable 750 kg | 1 | 71605A3CF27 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Stick-on label | 750KG | 1 | 01295A47BF9 | Shop at ECS Tuning | |||||
| 02 | Retrofit kit, electr. additional parts | 1 | 71602469982 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Control unit for trailer hitch | 1 | 63115A056C9 | Shop at ECS Tuning | ||||||
| -- | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 2 POL. | 1 | 61136925634 | $1.65 | Shop at ECS Tuning | ||||
| -- | Instrument carrier, rear right | 1 | 61136991155 | Shop at ECS Tuning | ||||||
| -- | Universal pin terminal uncoded | 2 POL. | 1 | 61138373583 | $2.72 | Shop at ECS Tuning | ||||
| -- | Retrofit cable set for power socket | 1 | 61127928145 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
