Side Scuttle - F55, F56, F57 LCI II for BMW MINI F56 LCI JCW (2024)
This Side Scuttle - F55, F56, F57 LCI II technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

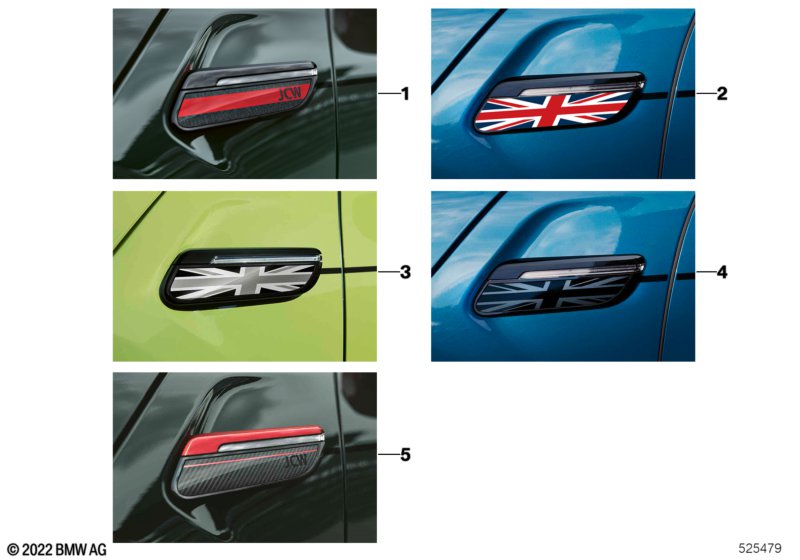

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Trim side panel | STITCHED CARBON | 1 | 51135A1D9B1 | Shop at ECS Tuning | |||||
| 02 | Trim side panel | UNION JACK | 1 | 51135A1D9B2 | Shop at ECS Tuning | |||||
| 03 | Trim side panel | BLACK JACK | 1 | 51135A1D9B3 | Shop at ECS Tuning | |||||
| 04 | Trim side panel | NIGHT JACK | 1 | 51135A1D9B4 | Shop at ECS Tuning | |||||
| 05 | Trim set with pad | 3K KÖPER | 1 | 51135A65C47 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI JCW Side Scuttle - F55, F56, F57 LCI II?
- This technical diagram illustrates the Side Scuttle - F55, F56, F57 LCI II within the Retrofitting / conversion / accessories group for the MINI F56 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trim side panel (Part #51135A1D9B1).
- Which models use the hardware listed in this Side Scuttle - F55, F56, F57 LCI II?
- The hardware and components featured in the Side Scuttle - F55, F56, F57 LCI II are specific to the MINI F56 LCI JCW produced during 2024. These technical specifications ensure that parts like the Trim side panel (51135A1D9B1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side Scuttle - F55, F56, F57 LCI II assembly?
- Each item in the Side Scuttle - F55, F56, F57 LCI II corresponds to the numbered list below the illustration. For the MINI F56 LCI JCW, you can identify the Trim side panel by locating its position on the schematic, which then links to the official BMW part number 51135A1D9B1 for the Retrofitting / conversion / accessories section.
