MINI Advanced Car Eye 3.0 / 3.0 Pro for BMW MINI F56 LCI JCW (2024)

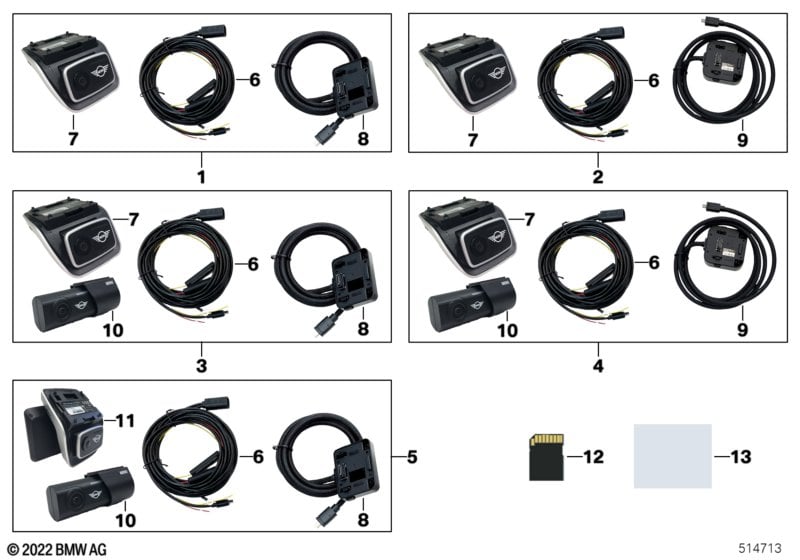

This MINI Advanced Car Eye 3.0 / 3.0 Pro technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Use of rear window camera for all convertibles is not possible! Not possible in Clubman! Prohibited in Canada and Spain Prohibited in Luxembourg and Portugal. Prohibited in Austria and Switzerland Permitted in France, but the sticker must be applied with the reference number 99 99 5A9BCE7 visible from the outside in order to comply with the legal stipulations. |
|||||||||
| Retrofit kit (without rear window camera) |
||||||||||
| 01 | MINI Advanced Car Eye 3.0 | SET ONLY FR CAM | 1 | 66215A444A4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| For China only Retrofit kit (without rear window camera) |
||||||||||
| 01 | MINI Advanced Car Eye 3.0 without ETC | FRONT CAMERA | 1 | 66215A56EA8 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| 02 | MINI Advanced Car Eye 3.0 incl.ETC | FRONT CAMERA | 1 | 66215A50C14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| For China only Retrofit kit (including rear window camera) |
||||||||||
| 03 | MINI Advanced Car Eye 3.0 without ETC | COMPLETE SET | 1 | 66215A605E3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| 04 | MINI Advanced Car Eye 3.0 including ETC | COMPLETE SET | 1 | 66215A605E8 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| Retrofit kit (including rear window camera) With display With radar |
||||||||||
| 05 | MINI Advanced Car Eye 3.0 Pro | COMPLETE SET | 1 | 66215A444A3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| Spare part separately | ||||||||||
| 06 | MINI wiring harness | ACE 3.0/3.0 PRO | 1 | 66215A544E7 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fuse light brown | 5A | 1 | 61131372523 | Shop at ECS Tuning | |||||
| -- | Fuse Mini, yellow-brown | 5A | 2 | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 2 | 61139232673 | ENDED | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1 | 61139316221 | Shop at ECS Tuning | ||||||
| 07 | MINI Advanced Car Eye 3.0 | FRONT CAMERA | 1 | 66215A444A6 | Shop at ECS Tuning | |||||
| 08 | Socket without ETC module | ACE 3.0/3.0 PRO | 1 | 66215A50C23 | Shop at ECS Tuning | |||||
| For China only Spare part separately |
||||||||||
| 09 | Socket incl. ETC module | ACE 3.0/3.0 PRO | 1 | 66215A50C22 | Shop at ECS Tuning | |||||
| Added ACE 3.0 front camera | ||||||||||
| 10 | MINI Advanced Car Eye 3.0 | REAR CAMERA | 1 | 66215A444A8 | Shop at ECS Tuning | |||||
| Spare part separately | ||||||||||
| 10 | MINI Advanced Car Eye 3.0 Pro | REAR CAMERA | 1 | 66215A444A7 | Shop at ECS Tuning | |||||
| For China only Added ACE 3.0 front camera |
||||||||||
| 10 | MINI Advanced Car Eye 3.0 | REAR CAMERA | 1 | 66215A56EB0 | Shop at ECS Tuning | |||||
| Spare part separately | ||||||||||
| 11 | MINI Advanced Car Eye 3.0 Pro | FRONT CAMERA | 1 | 66215A444A5 | Shop at ECS Tuning | |||||
| 12 | SD card | 64GB | 1 | 66215A44499 | Shop at ECS Tuning | |||||
| 12 | SD card | 32GB | 1 | 66215A50C15 | Shop at ECS Tuning | |||||
| 12 | SD card | 128GB | 1 | 66215A50C16 | Shop at ECS Tuning | |||||
| 13 | Set of adhesive pads | ACE 3.0/3.0 PRO | 1 | 66215A444A1 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
