Steering wheel for BMW MINI F55 LCI Cooper (2024)

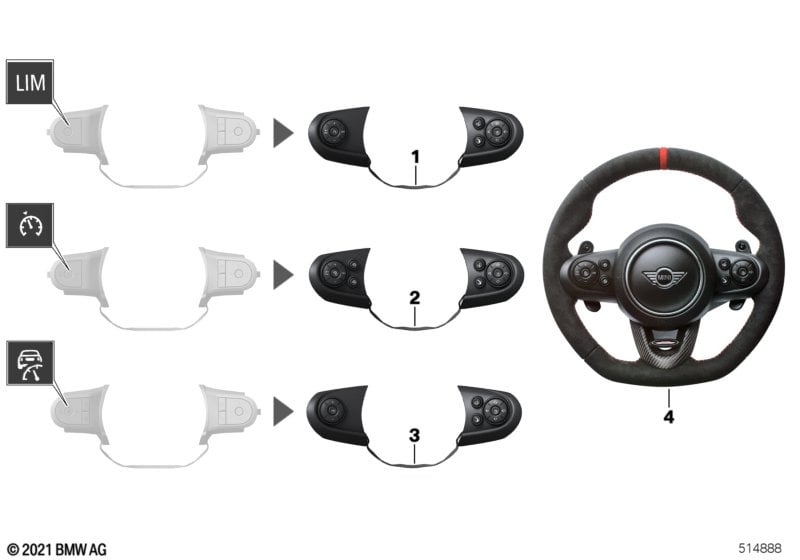

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with OE248 steering wheel heating: Remove option S248A (heated steering wheel) from the vehicle order and update the vehicle without S248A with this vehicle order. As soon as S248A has been removed from the vehicle no fault message will be shown regarding Cruise Control. |
|||||||||
| For vehicles with Active cruise control and Cruise control with brake function |
S541A=No S544A=No |
|||||||||
| 01 | Switch, MF steering wheel, Sport | 1 | 03/2021 | 61316814567 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control and Cruise control with brake function |
S541A=No S544A=Yes |
|||||||||
| 02 | Switch, MF steering wheel, Sport | 1 | 03/2021 | 61316814564 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control and Cruise control with brake function |
S541A=Yes S544A=Yes |
|||||||||
| 03 | Switch, MF steering wheel, Sport | 1 | 03/2021 | 61316814566 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control and Cruise control with brake function |
S541A=Yes S544A=No |
|||||||||
| 03 | Switch, MF steering wheel, Sport | 1 | 03/2021 | 61316814566 | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission or Sport transmission w/ dual-plate clutch or Automatic transmission w/ shift paddles |
S2TBA=Yes S2TCA=Yes S2TEA=Yes |
|||||||||
| 04 | Steering wheel rim Alcantara/Carbon | J.C. WORKS PRO | 1 | 03/2021 | 32302364770 | Shop at ECS Tuning | ||||
| For vehicles with Sport automatic transmission and Sport transmission w/ dual-plate clutch and Automatic transmission w/ shift paddles |
S2TBA=No S2TCA=No S2TEA=No |
|||||||||
| 04 | Steering wheel rim Alcantara/Carbon | J.C. WORKS PRO | 1 | 03/2021 | 32302364769 | Shop at ECS Tuning | ||||
