BMW LA wheel M Perf. Y-spoke 1111M- 19" for BMW 4 Series F83 M4 M4 (2017)

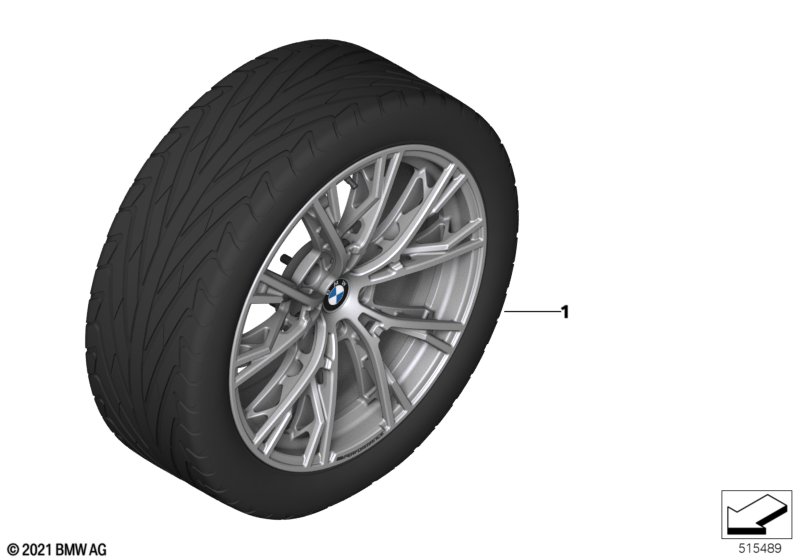

This BMW LA wheel M Perf. Y-spoke 1111M- 19" technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and Tire pressure display |
L807A=No S2VBA=Yes |
||||||||
| Standard tires without emergency running properties Mixed tyres Front axle 255/35ZR19 96Y XL Rear axle 275/35ZR19 100Y XL Michelin Pilot Super Sport |
||||||||||
| 01 | TPM wheel w/tire set, summer, magnesite | M PERFORMANCE | 1 | 36115A47B65 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F83 M4 M4 BMW LA wheel M Perf. Y-spoke 1111M- 19"?
- This technical diagram illustrates the BMW LA wheel M Perf. Y-spoke 1111M- 19" within the Retrofitting / conversion / accessories group for the 4 Series F83 M4 M4 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the TPM wheel w/tire set, summer, magnesite (Part #36115A47B65).
- Which models use the hardware listed in this BMW LA wheel M Perf. Y-spoke 1111M- 19"?
- The hardware and components featured in the BMW LA wheel M Perf. Y-spoke 1111M- 19" are specific to the 4 Series F83 M4 M4 produced during 2017. These technical specifications ensure that parts like the TPM wheel w/tire set, summer, magnesite (36115A47B65) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel M Perf. Y-spoke 1111M- 19" assembly?
- Each item in the BMW LA wheel M Perf. Y-spoke 1111M- 19" corresponds to the numbered list below the illustration. For the 4 Series F83 M4 M4, you can identify the TPM wheel w/tire set, summer, magnesite by locating its position on the schematic, which then links to the official BMW part number 36115A47B65 for the Retrofitting / conversion / accessories section.
