Winter wheel with tire V-spoke 635 - 19" for BMW 5 Series G30 520d (2020)

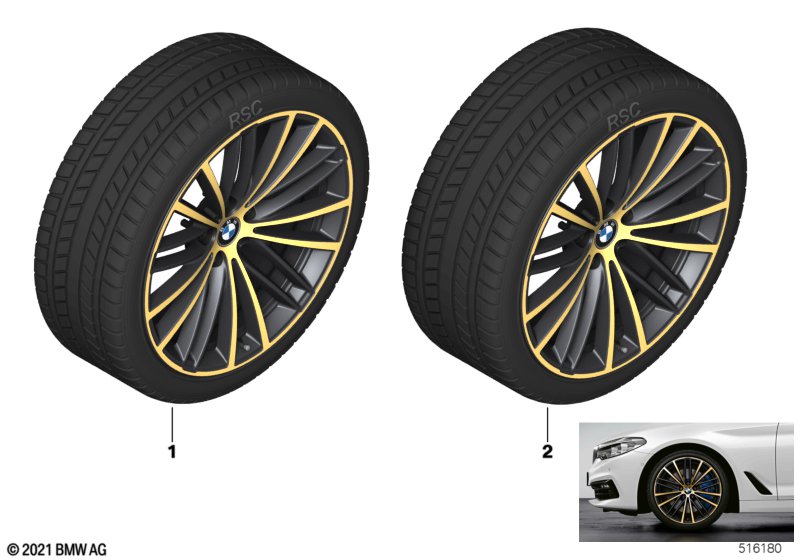

This Winter wheel with tire V-spoke 635 - 19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli P-Zero Winter r-f |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM wheel with tire winter night gold | 245/40R19 98V | 4 | 36115A4D7D7 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli P-Zero Winter r-f only for front axle |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM wheel with tire winter night gold | 245/40R19 98V | 2 | 11/2017 | 36115A4D7D7 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli P-Zero Winter r-f only for rear axle |
L807A=No S2VBA=Yes |
|||||||||
| 02 | TPM wheel with tire winter night gold | 275/35R19 100V | 2 | 11/2017 | 36115A4D7D8 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
