Retrofit MPA front ornamental grille for BMW 3 Series G28 Sedan 320Li (2021)

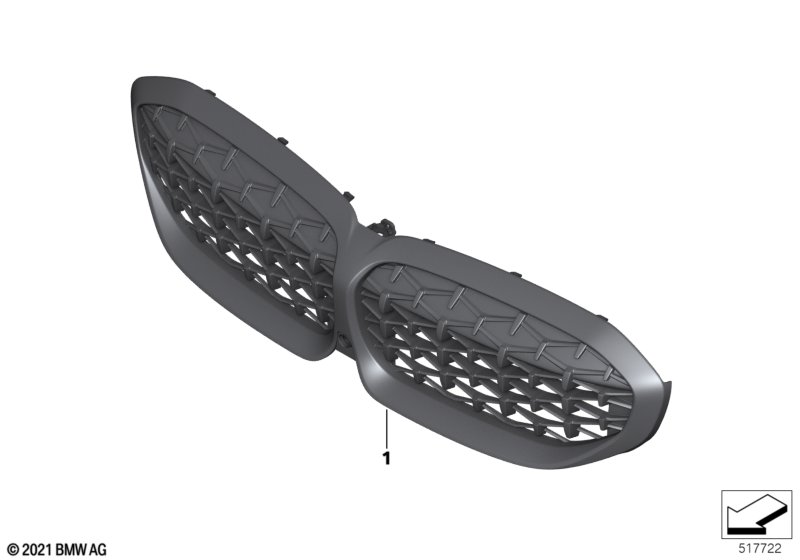

This Retrofit MPA front ornamental grille technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Grill front | -M- | 1 | 51135A52A99 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Parking assistance system Plus |
L8AAA=Yes S5DNA=Yes |
|||||||||
| 01 | Grill front | -M- | 1 | 51135A52A99 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Plug camera system | 1 | 51117933177 | Shop at ECS Tuning | ||||||
