Floor mat, Allweather for BMW 5 Series G38 530Li (2020)

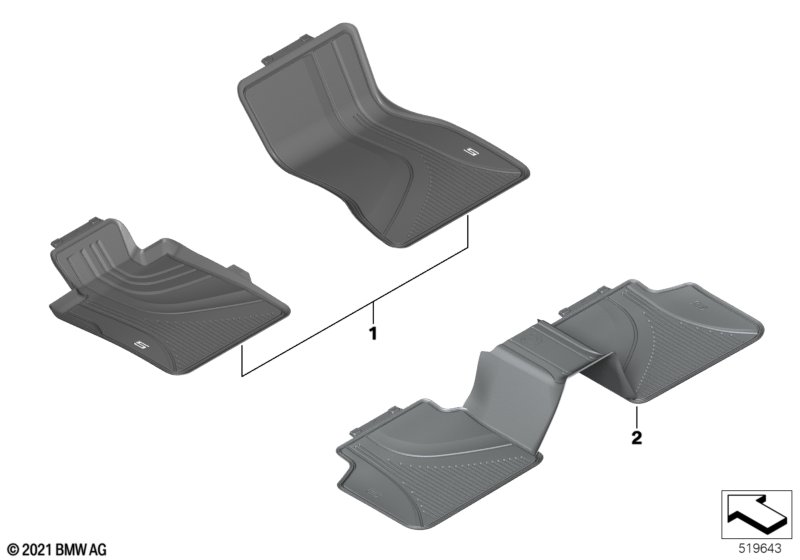

This Floor mat, Allweather technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor mats, all-weather, front | LHD SW | 1 | 51472414218 | Shop at ECS Tuning | |||||
| 02 | Floor mats, all-weather, rear | + ABDECKG. MITU | 1 | 51475A51365 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
