BMW LA wheel double spoke 853 - 18" for BMW 4 Series G26 Gran Coupé 430dX (2024)

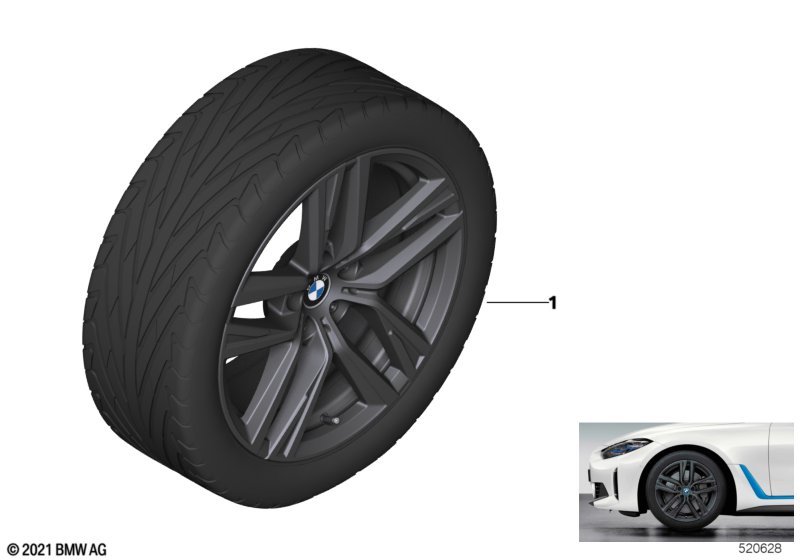

This BMW LA wheel double spoke 853 - 18" technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and Tire pressure display |
L807A=No S2VBA=Yes |
||||||||
| Standard tires without emergency running properties Goodyear Eagle F1 Asymmetric 5 |
||||||||||
| 01 | TPM wheel w/tire set summer Gunmetal Gy | 245/45R18 100Y | 1 | 36115A563A7 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties Hankook Ventus S1 evo3 |
||||||||||
| 01 | TPM wheel w/tire set summer Gunmetal Gy | 245/45R18 100Y | 1 | 36115B75880 | Shop at ECS Tuning | |||||
