M Performance aerodynamics acc.parts for BMW 3 Series G20 Sedan LCI 320e (2024)

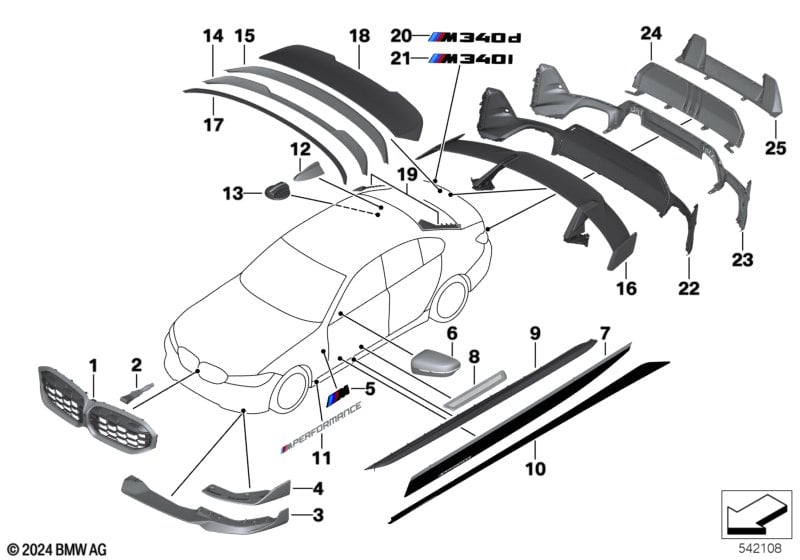

This M Performance aerodynamics acc.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. Memo: For mainland China: Retrofits that do not correspond to GA- 801 2019 are only permitted for use on the racetrack and not for public road traffic in accordance with the relevant retrofit regulation. Tow cable, mirror caps, side sill attachments, roof antenna cover and rear spoiler for G20N, G21N and G28N do not correspond to GA-801 2019. Because the front attachments are only approved in combination with rear spoilers, they are to be treated as parts that do not correspond to GA-801 2019. |
|||||||||
| For vehicles with Parking assistance system Plus and M Aerodynamics package |
S5DNA=No S715A=Yes |
|||||||||
| 01 | Front radiator grill carbon | M PERFORMANCE | 1 | 51719632873 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Plug camera system | 1 | 51117933177 | Shop at ECS Tuning | ||||||
| For vehicles with BMW radiator grille iconic glow and Parking assistance system Plus and M Aerodynamics package |
S3DNA=No S5DNA=Yes S715A=Yes |
|||||||||
| 01 | Front radiator grill carbon | M PERFORMANCE | 1 | 51719632873 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package Note: Integrated into the EU type approval, suitable in the front and rear |
S715A=Yes |
|||||||||
| 02 | Tow cable | M PERFORMANCE | 1 | 72155A57B31 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 03 | Front attachment, carbon, right | M PERFORMANCE | 1 | 51195A4B368 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Front attachment, carbon, left | M PERFORMANCE | 1 | 51195A4B369 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Rear spoiler, Carbon, ECE | M PERFORMANCE | 1 | 51192458369 | Shop at ECS Tuning | |||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Torx-bolt for plastic material | TS5X15 | 1 | 51137057671 | $0.59 | Shop at ECS Tuning | ||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Washer | 5,3-ST-ZNS3 | 1 | 07119904497 | $0.11 | Shop at ECS Tuning | ||||
| As an alternative to CFRP rear spoiler 51 19 2458369, CFRP rear spoiler with flow-through 51 19 2475051 can also be installed. For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| 05 | M logos side high-gloss black | M PERFORMANCE | 1 | 51145A4B373 | Shop at ECS Tuning | |||||
| 06 | Outside mirror shroud, Carbon, LHD right | M PERFORMANCE | 1 | 51162462824 | Shop at ECS Tuning | |||||
| 06 | Outside mirror shroud, Carbon, LHD left | M PERFORMANCE | 1 | 51162462825 | Shop at ECS Tuning | |||||
| 07 | Foil application Frozen Black left/right | M PERFORMANCE | 1 | 51142458194 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Decal kit | M PERFORMANCE | X | 51142461811 | Shop at ECS Tuning | |||||
| 08 | Cover, entrance | M PERFORMANCE | 2 | 51472472520 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package Only in conjunction with item 7 or item 11 |
S715A=Yes |
|||||||||
| 09 | Rocker panel cover, black, high-gloss rt | M PERFORMANCE | 1 | 51192455896 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 09 | Sill attachment part black high-gloss lt | M PERFORMANCE | 1 | 51192455897 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 10 | Foil applicat.for side sill Frozen Black | M PERFORMANCE | 1 | 51142458236 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Rocker panel cover, black, high-gloss rt | M PERFORMANCE | X | 51192455896 | Shop at ECS Tuning | |||||
| -- | Sill attachment part black high-gloss lt | M PERFORMANCE | X | 51192455897 | Shop at ECS Tuning | |||||
| 11 | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Foil application Frozen Black left/right | M PERFORMANCE | X | 51142458194 | Shop at ECS Tuning | |||||
| Possible in conjunction with carbon roof, but end customers should decide whether they like the look of the aramide antenna cover on the carbon roof. |
||||||||||
| 12 | Antenna cover aramide | M PERFORMANCE | 1 | 65205A59AD9 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | 2X KLEBER | 1 | 83192289287 | Shop at ECS Tuning | |||||
| 13 | Tank cap, cap, carbon | M PERFORMANCE | 1 | 16112472988 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 14 | Rear spoiler, Carbon, US | M PERFORMANCE | 1 | 51195A57B14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| 15 | Rear spoiler, Carbon, ECE | M PERFORMANCE | 1 | 51192458369 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Front attachment, carbon, right | M PERFORMANCE | 1 | 51195A4B368 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Front attachment, carbon, left | M PERFORMANCE | 1 | 51195A4B369 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| 16 | Rear spoiler in Carbon, free-flow | M PERFORMANCE | 1 | 51192475051 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Adaptersatz G80 | M PERFORMANCE | 1 | 51625A1CCB3 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Front attachment, carbon, right | M PERFORMANCE | 1 | 51195A4B368 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Front attachment, carbon, left | M PERFORMANCE | 1 | 51195A4B369 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| 17 | Rear spoiler, black, matt | M PERFORMANCE | 1 | 51192455880 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. Rear spoiler is equipped with adhesive tape for assembly. The ends must also be secured with adhesive. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. Rear spoiler is equipped with adhesive tape for assembly. The ends must also be secured with adhesive. |
||||||||||
| For vehicles with M Aerodynamics package Not suitable for pos. 25 Für den Verbau ist Pos. 24 notwendig |
S715A=Yes |
|||||||||
| 22 | Bumper trim black high-gloss rear | M PERFORMANCE | 1 | 51195A4F522 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package Not suitable for pos. 23 Für den Verbau ist Pos. 22 notwendig |
S715A=Yes |
|||||||||
| 24 | Rear diffuser, Carbon | M PERFORMANCE | 1 | 51195A4F525 | Shop at ECS Tuning | |||||
