Anniversary Edition for BMW MINI F56 LCI JCW (2024)

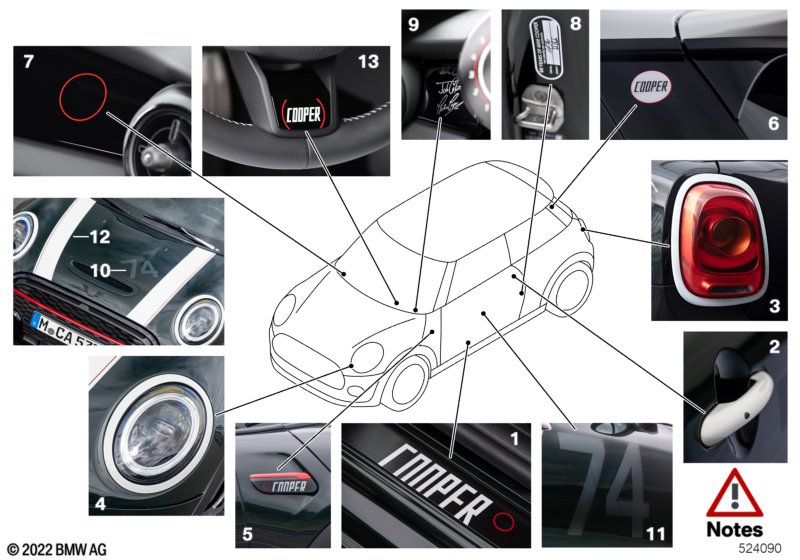

This Anniversary Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Entrance strip, front | F56 ANNIVERSARY | 2 | 51775A4B1E8 | Shop at ECS Tuning | |||||
| 01 | Adhesive pad, front | 2 | 51777403245 | Shop at ECS Tuning | ||||||
| 02 | Türaussengriff links LHD | ASPEN WHITE | 1 | 51719624261 | Shop at ECS Tuning | |||||
| 02 | External door handle right LHD | ASPEN WHITE | 1 | 51719624264 | Shop at ECS Tuning | |||||
| 03 | Trim ring tail light, left | ASPEN WHITE | 1 | 51719624307 | Shop at ECS Tuning | |||||
| 03 | Trim ring tail light right | ASPEN WHITE | 1 | 51719625906 | Shop at ECS Tuning | |||||
| 04 | Trim ring, headlight, left | ASPEN WHITE | 1 | 51719629577 | Shop at ECS Tuning | |||||
| 04 | Trim ring, headlight, right | ASPEN WHITE | 1 | 51719629578 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 005 - Anniversary |
||||||||||
| 05 | Trim cover set with pad | CUSTOMISED | 1 | 51135A34729 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 006 - Anniversary |
||||||||||
| 06 | Sticker size XS with polyurethane | CUSTOMISED | 2 | 51145A35369 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 003 - Anniversary |
||||||||||
| 07 | Sticker size XS without polyurethane | CUSTOMISED | 2 | 51145A35370 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 015 - Anniversary |
||||||||||
| 08 | Sticker size S | CUSTOMISED | 1 | 51145A35371 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 016 - Anniversary |
||||||||||
| 09 | Sticker size S | CUSTOMISED | 1 | 51145A35371 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 004 - Anniversary |
||||||||||
| 10 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 022 - Anniversary |
||||||||||
| 11 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 023 - Anniversary |
||||||||||
| 12 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| 13 | Trim steering wheel bottom | ANNIVERSARY | 1 | 32305A4B200 | Shop at ECS Tuning | |||||
