Shadow Edition for BMW MINI F56 LCI JCW (2024)

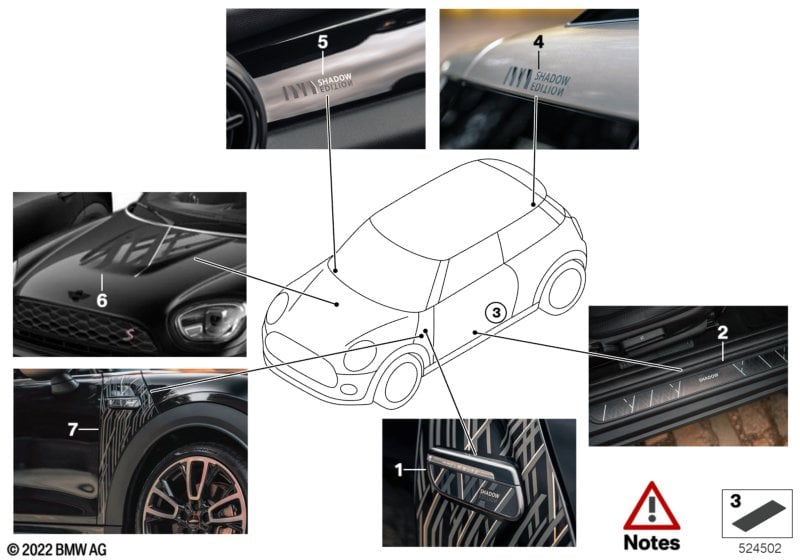

This Shadow Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note: The part shall be ordered with the Motif code. 004 - Shadow |
||||||||||
| 01 | Trim cover set with pad | CUSTOMISED | 1 | 51135A34729 | Shop at ECS Tuning | |||||
| 02 | Entrance strip, front | F56 SHADOW | 2 | 51775A4B1E6 | Shop at ECS Tuning | |||||
| 03 | Adhesive pad, front | 2 | 51777403242 | Shop at ECS Tuning | ||||||
| Note: The part shall be ordered with the Motif code. 003 - Shadow kit of roof stickers (left + right) |
||||||||||
| 04 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 001 - Shadow interior equipment sticker |
||||||||||
| 05 | Sticker size S | CUSTOMISED | 1 | 51145A35371 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 006 - Shadow sticker hood |
||||||||||
| 06 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 021 - Shadow F55, F56, F57 side wrapping left |
||||||||||
| 07 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 020 - Shadow F55, F56, F57 side wrapping right |
||||||||||
| 07 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
