Jubilee Edition UAE for BMW MINI F56 LCI JCW (2024)

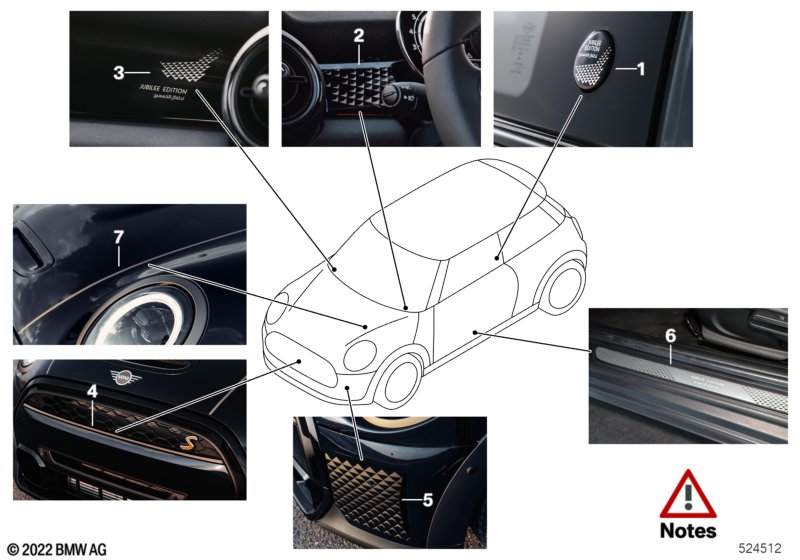

This Jubilee Edition UAE technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note: The part shall be ordered with the Motif code. 011 - Jubilee PU sticker |
||||||||||
| 01 | Sticker size XS with polyurethane | CUSTOMISED | 2 | 51145A35369 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 007 - Jubilee interior equipment sticker left |
||||||||||
| 02 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 008 - Interior equipment sticker right |
||||||||||
| 03 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 009 - Jubilee sticker front side gill |
||||||||||
| 04 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 044 - Jubilee sticker front right |
||||||||||
| 05 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 043 - Jubilee sticker front left |
||||||||||
| 05 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 008 - Jubilee Edition |
||||||||||
| 06 | MINI LED door sill cov.strip Customised | F56, F57 | 1 | 51475A33F12 | Shop at ECS Tuning | |||||
| 07 | Set hood strips Frozen Brass | MINI TOOLBOX | 1 | 51145A0DB94 | Shop at ECS Tuning | |||||
