Rockingham GT Edition for BMW MINI F56 JCW (2021)

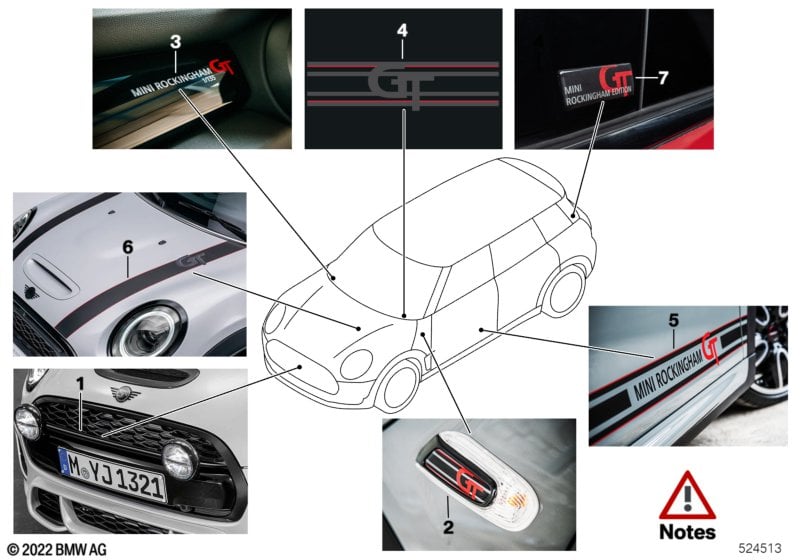

This Rockingham GT Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front side gill, piano black | PIANO BLACK | 1 | 51719625835 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 006 - Rockingham GT PU Side Scuttle |
||||||||||
| 02 | Trim cover set with pad | CUSTOMISED | 1 | 51135A34726 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 002 - Rockingham GT interior equipment F56 LCI I |
||||||||||
| 03 | Sticker size S | CUSTOMISED | 1 | 51145A35371 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 001 - Rockingham GT side stripes |
||||||||||
| 05 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 024 - Stripes hood F55, F56 |
||||||||||
| 06 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: The part shall be ordered with the Motif code. 007 - Rockingham GT (PU sticker) |
||||||||||
| 07 | Sticker size XS with polyurethane | CUSTOMISED | 2 | 51145A35369 | Shop at ECS Tuning | |||||
