Chinese New Year 2023 Edition for BMW MINI F56 LCI One (2024)

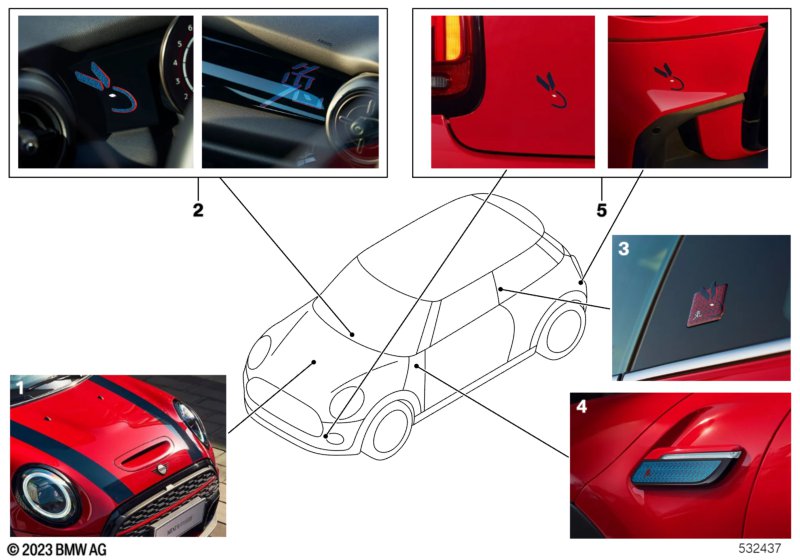

This Chinese New Year 2023 Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note: Part must be ordered with Motif code 052 - CNY Edition |
||||||||||
| 01 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 019 - CNY Edition |
||||||||||
| 02 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 017 - CNY Edition |
||||||||||
| 03 | Sticker size XS with polyurethane | CUSTOMISED | 2 | 51145A35369 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 012 - CNY Edition |
||||||||||
| 04 | Trim cover set with pad | CUSTOMISED | 1 | 51135A34729 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 028 - CNY Edition |
||||||||||
| 05 | Sticker size S | CUSTOMISED | 1 | 51145A35371 | Shop at ECS Tuning | |||||
