Kings Cross Edition for BMW MINI F56 LCI JCW (2024)

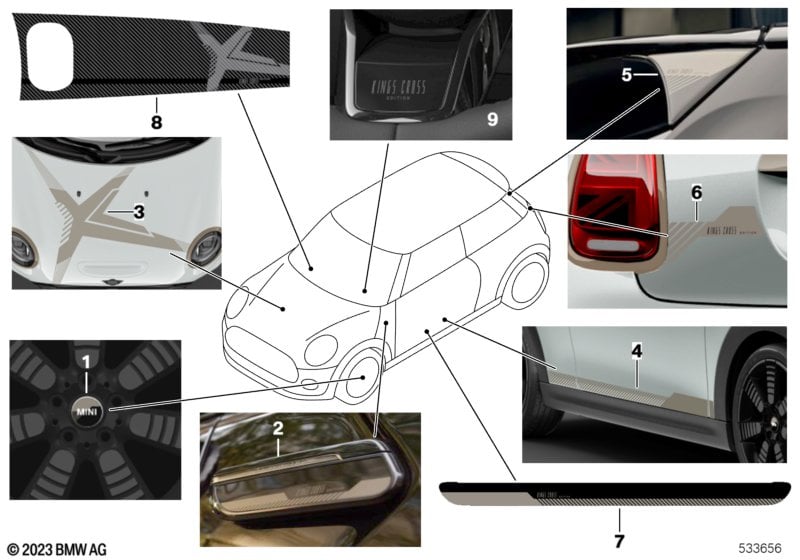

This Kings Cross Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hub cap King's Cross Edition | 1 | 36135A7C993 | Shop at ECS Tuning | ||||||
| Note: Part must be ordered with Motif code 013 - Kings Cross Edition |
||||||||||
| 02 | Trim cover set with pad | CUSTOMISED | 1 | 51135A34729 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 004 - Kings Cross Edition |
||||||||||
| 03 | Sticker XXL | CUSTOMISED | 1 | 51145A65C35 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 053 - Kings Cross Edition, left 054 - Kings Cross Edition, right |
||||||||||
| 04 | Sticker size XL | CUSTOMISED | 1 | 51145A35373 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 018 - Kings Cross, left 019 - Kings Cross, right |
||||||||||
| 05 | Sticker size XS with polyurethane | CUSTOMISED | 1 | 51145A35369 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 020 - Kings Cross Edition |
||||||||||
| 06 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| 07 | Front left entrance cover | F55 KINGS CROSS | 1 | 51475A7CDB1 | Shop at ECS Tuning | |||||
| 07 | Front right entrance cover | F55 KINGS CROSS | 1 | 51475A7CDB2 | Shop at ECS Tuning | |||||
| 07 | Adhesive pad, front | 2 | 51777403246 | Shop at ECS Tuning | ||||||
| 08 | Steering wheel decorative trim | KINGS CROSS | 1 | 32305A7BB26 | Shop at ECS Tuning | |||||
| 08 | Decorative trim driver's side | KINGS CR. FS LL | 1 | 51459639547 | Shop at ECS Tuning | |||||
| 09 | Steering wheel decorative trim | KINGS CROSS | 1 | 32305A7BB26 | Shop at ECS Tuning | |||||
