Mayfield Edition for BMW MINI F56 LCI Cooper (2024)

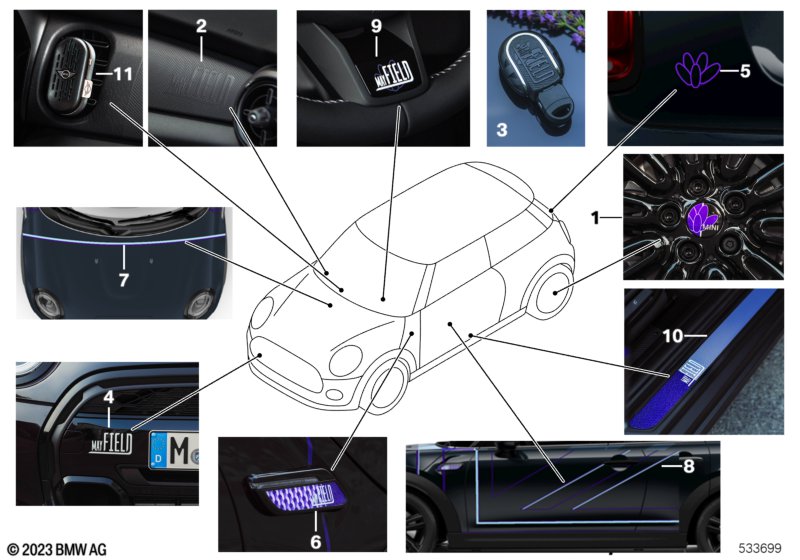

This Mayfield Edition technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub cover, Mayfield Edition | 1 | 36135A929D0 | Shop at ECS Tuning | ||||||
| 02 | Decorative trim driver's side | MAYFIELD FS, LL | 1 | 51459641149 | Shop at ECS Tuning | |||||
| 02 | Decorative trim front passenger side | MAYFIELD BFS,LL | 1 | 51459641150 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 507 - Mayfield |
||||||||||
| 03 | Key cap | CUSTOM. COATED | 1 | 82295A36D99 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 021 - Sticker Front Mayfield |
||||||||||
| 04 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 022 - Sticker Rear Mayfield |
||||||||||
| 05 | Sticker size M | CUSTOMISED | 1 | 51145A35372 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 001 - Mayfield |
||||||||||
| 06 | Trim side panel | CUSTOMISED | 1 | 51135A90E74 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 005 - Sticker Bonnet Mayfield |
||||||||||
| 07 | Sticker XXL | CUSTOMISED | 1 | 51145A65C35 | Shop at ECS Tuning | |||||
| Note: Part must be ordered with Motif code 006 - Mayfield, left 007 - Mayfield, right |
||||||||||
| 08 | Sticker XXL | CUSTOMISED | 1 | 51145A65C35 | Shop at ECS Tuning | |||||
| 09 | Steering wheel decorative trim | MAYFIELD | 1 | 32305A912A0 | Shop at ECS Tuning | |||||
| 10 | Sill trim | F56 MAYFIELD | 2 | 51475A8D9E4 | Shop at ECS Tuning | |||||
| 10 | Adhesive pad, front | 2 | 51777403242 | Shop at ECS Tuning | ||||||
| 11 | MINI Natural Air starter kit | 1 | 83125A7DCA5 | Shop at ECS Tuning | ||||||
| 11 | MINI Natural Air Relaxing Twilight | SET | 1 | 83125A7DCA9 | Shop at ECS Tuning | |||||
