Winter wheel with tire Y-spoke 932 - 18" for BMW 5 Series G61 Touring 520dX (2025)

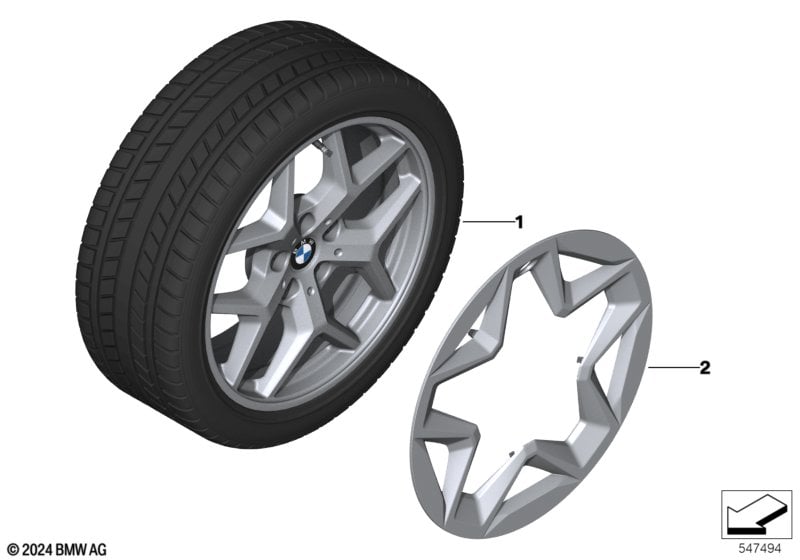

This Winter wheel with tire Y-spoke 932 - 18" technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display |
L807A=No L8AAA=No S2VBA=Yes |
||||||||
| Standard tires without emergency running properties Continental WinterContact TS860S Suitable for use with snow chains |
||||||||||
| 01 | TPM wheel w/tire winter Lightning Gray | 225/55R18 102H | 4 | 36115A8E056 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | 20" M PERF. | X | 34118846250 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties Pirelli Cinturato winter 2 Suitable for use with snow chains |
||||||||||
| 01 | TPM wheel w/tire winter Lightning Gray | 225/55R18 102H | 4 | 36115B5CFE3 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | 20" M PERF. | X | 34118846250 | Shop at ECS Tuning | |||||
| Aerodynamic cover, Lightning Grey solid paint! Not part of the winter wheels with tire. Can be optionally ordered and mounted to the winter wheel with tyre. |
||||||||||
| 02 | Trim air ring | 18" | 4 | 36135A32716 | Shop at ECS Tuning | |||||
