Win wh with tire, Triplex Sp. 933 - 19" for BMW 5 Series G60 Sedan 530eX (2025)

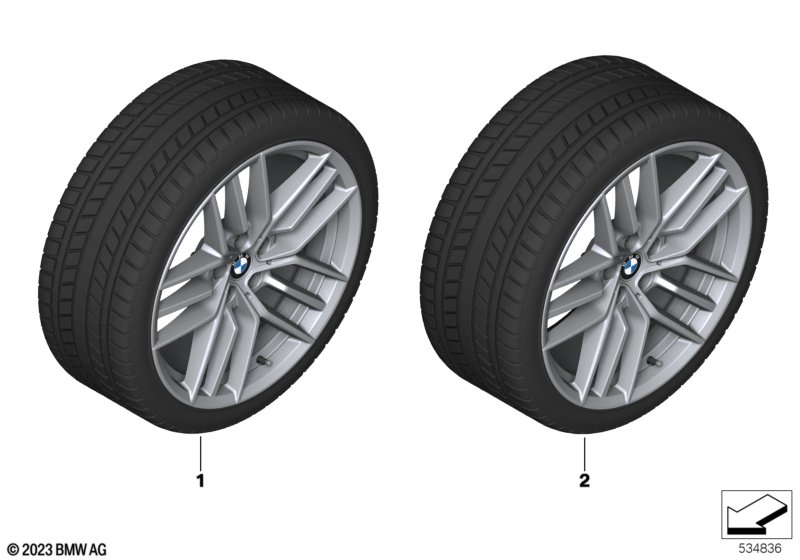

This Win wh with tire, Triplex Sp. 933 - 19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display |
L807A=No L8AAA=No S2VBA=Yes |
||||||||
| not suitable for | ||||||||||
| -- | Compressor, tire sealant, integrated | PLUS | X | 71105B4B019 | Shop at ECS Tuning | |||||
| -- | Mobility System Plus | X | 71105B4B027 | Shop at ECS Tuning | ||||||
| -- | Mobility System Plus | X | 71105B50A80 | Shop at ECS Tuning | ||||||
| -- | Retrofit kit for Sport brakes, red | 20" M PERF. | X | 34118846250 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties All tires Pirelli P-Zero winter Suitable for use with snow chains |
||||||||||
| 01 | TPM wheel w/tire winter Refined Silver | 245/45R19 102H | 4 | 36115B5CFE8 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties Continental WinterContact TS860S All tires Suitable for use with snow chains |
||||||||||
| 01 | TPM wheel w/tire winter Refined Silver | 245/45R19 102H | 4 | 36115A8E059 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties Continental WinterContact TS860S only for front axle not for use with snow chains |
||||||||||
| 01 | TPM wheel w/tire winter Refined Silver | 245/45R19 102H | 2 | 36115A8E059 | Shop at ECS Tuning | |||||
| Standard tires without emergency running properties Continental WinterContact TS860S only for rear axle not for use with snow chains |
||||||||||
| 02 | TPM wheel w/tire winter Refined Silver | 275/40R19 105H | 2 | 36115A8E064 | Shop at ECS Tuning | |||||
