Flexible Fast Charger 2.0 for BMW 3 Series G20 Sedan LCI 330e (2024)

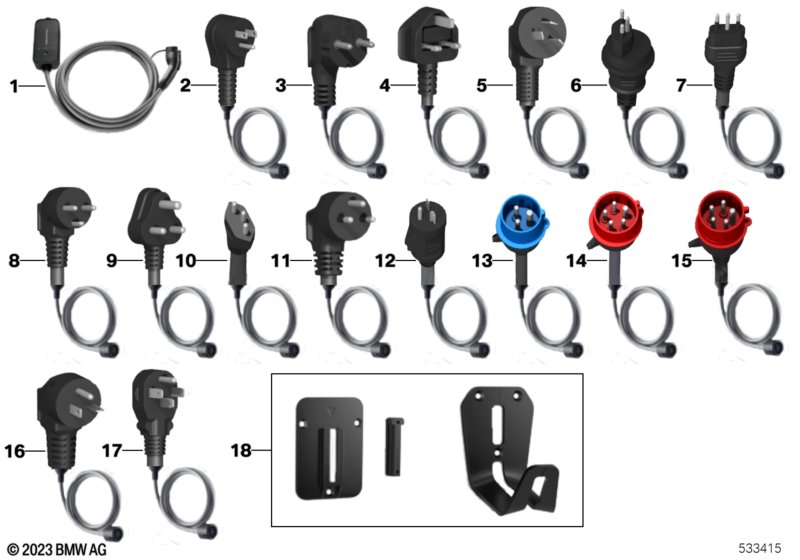

This Flexible Fast Charger 2.0 technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 01 | Flex charger | IEC TYP 2 16A | 1 | 61448490509 | Shop at ECS Tuning | |||||
| for Andorra, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahrain, Bangladesh, Belarus, Belgium, Bosnia Herzegovina, Botswana, Brazil, Brunei, Bulgaria, Cambodia, Chile, Croatia, Cyprus, Czechia, Denmark, Egypt, Estonia, Finland, France, French Guiana, French Polynesia, Germany, Greece, Georgian, Guadeloupe, Hong Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, La Réunion, Latvia, Lebanon, Lesotho, Liechtenstein, Lithuania, Luxembourg, Macau, Malaysia, Malta, Martinique, Mauritius, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Myanmar, Namibia, Netherlands, New Caledonia, New Zealand, Northern Cyprus, North Macedonia, Norway, Oman, Pakistan, Palestine, Paraguay, Peru, Poland, Portugal, Qatar, Romania, Russia, San Marino, Saudi Arabia, Serbia, Seychelles, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, St. Martin, Sweden, Switzerland, Tahiti, Thailand, Tunisia, Turkey, Turkmenistan, UAE Abu Dhabi, UAE Ajman, UAE Dubai, UAE Fujairah, UAE Ra's Al-Khaimah, UAE Sharjah, UAE um Al- Qaiwain, Ukraine, United Kingdom, Uruguay, Uzbekistan, Vietnam |
||||||||||
| For vehicles with National version japan or Charge socket, export |
L807A=No S8BKA=Yes |
|||||||||
| 01 | Flex charger | IEC TYP 1 16A | 1 | 61448490508 | Shop at ECS Tuning | |||||
| for Korea, Sri Lanka | ||||||||||
| For vehicles with National version japan or Charge socket, export |
L807A=Yes S8BKA=Yes |
|||||||||
| 01 | Flex charger | SAE TYP 1 15A | 1 | 61447826826 | ENDED | Shop at ECS Tuning | ||||
| For Japan | ||||||||||
| For vehicles with National version Korea and National version japan and Charge socket, export |
L802A=No L807A=No S8BKA=Yes |
|||||||||
| 01 | Flex charger | SAE TYP 1 40A | 1 | 61448490510 | ENDED | Shop at ECS Tuning | ||||
| for Bahamas, Bermuda, Canada, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Puerto Rico, Taiwan, United States of America |
||||||||||
| 02 | Adapter, charging cable | TYPE B | 1 | 61448490519 | Shop at ECS Tuning | |||||
| for Bahamas, Bermuda, Canada, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Puerto Rico, Taiwan, United States of America |
||||||||||
| 02 | Adapter, charging cable | TYP B NEMA 5-15 | 1 | 61447826837 | Shop at ECS Tuning | |||||
| for Colombia | ||||||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Adapter, charging cable | TYPE E/F | 1 | 61448490521 | Shop at ECS Tuning | |||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 03 | Adapter, charging cable | TYPE E/F | 1 | 61448490521 | Shop at ECS Tuning | |||||
| for Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia Herzegovina, Bulgaria, Croatia, Czechia, Egypt, Estonia, France, French Guiana, French Polynesia, Georgian, Germany, Greece, Guadeloupe, Hungary, Iceland, Indonesia, Italy, Kazakhstan, Kyrgyzstan, La Réunion, Latvia, Lithuania, Luxembourg, Martinique, Moldova, Monaco, Mongolia, Montenegro, Morocco, Netherlands, New Caledonia, North Macedonia, Norway, Paraguay, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, South Korea, Spain, St. Martin, Sweden, Tahiti, Tunisia, Turkey, Turkmenistan, Ukraine, Uruguay, Uzbekistan, Vietnam |
||||||||||
| 03 | Adapter, charging cable | TYPE E/F 8A | 1 | 61447826828 | Shop at ECS Tuning | |||||
| for Finland | ||||||||||
| 03 | Adapter, charging cable | IT TYPE E+F | 1 | 61447826832 | Shop at ECS Tuning | |||||
| for Norway | ||||||||||
| 04 | Adapter, charging cable | TYPE G | 1 | 61448490518 | Shop at ECS Tuning | |||||
| for Bahrain, Bangladesh, Botswana, Brunei, Cambodia, Cyprus, Hong Kong, Iraq, Ireland, Jordan, Kuwait, Lebanon, Macau, Malaysia, Malta, Mauritius, Myanmar, Northern Cyprus, Oman, Pakistan, Qatar, Saudi Arabia, Seychelles, UAE Adschman, UAE Dubai, UAE Fujairah, UAE Ra's Al-Khaimah, UAE Sharjah, UAE um Al-Qaiwain, United Kindom |
||||||||||
| For vehicles with Charge socket, export for Malta, Northern Cyprus, United Kingdom |
S8BKA=No |
|||||||||
| 04 | Adapter, charging cable | IT TYPE G | 1 | 61447826835 | Shop at ECS Tuning | |||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 05 | Adapter, charging cable | TYPE I | 1 | 61448490514 | Shop at ECS Tuning | |||||
| for Australia, New Zealand | ||||||||||
| 05 | Adapter, charging cable | TYPE I | 1 | 61448490515 | Shop at ECS Tuning | |||||
| for Argentina | ||||||||||
| 06 | Adapter, charging cable | TYPE J | 1 | 61448490511 | Shop at ECS Tuning | |||||
| for Switzerland, Liechtenstein | ||||||||||
| 07 | Adapter, charging cable | TYPE L | 1 | 61448490517 | Shop at ECS Tuning | |||||
| for Chile, Peru, Uruguay | ||||||||||
| 08 | Adapter, charging cable | TYPE K | 1 | 61448490512 | Shop at ECS Tuning | |||||
| for Denmark | ||||||||||
| 09 | Adapter, charging cable | SANS 164-1 | 1 | 61448490520 | Shop at ECS Tuning | |||||
| for Lesotho, Mozambique, Namibia, South Africa |
||||||||||
| 10 | Adapter, charging cable | TYPE N | 1 | 61448490513 | Shop at ECS Tuning | |||||
| for Brazil | ||||||||||
| 11 | Adapter, charging cable | TYPE O | 1 | 61448490516 | Shop at ECS Tuning | |||||
| for Thailand | ||||||||||
| For vehicles with National version Korea and National version japan and Charge socket, export |
L802A=No L807A=Yes S8BKA=Yes |
|||||||||
| 12 | Adapter, charging cable | JIS C8303 | 1 | 61448490526 | Shop at ECS Tuning | |||||
| For Japan | ||||||||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 13 | Adapter, charging cable | CEE BLUE 16A | 1 | 61447826829 | Shop at ECS Tuning | |||||
| for Israel, Palestine | ||||||||||
| 13 | Adapter, charging cable | CEE BLUE 16A | 1 | 61447826830 | Shop at ECS Tuning | |||||
| for India | ||||||||||
| 13 | Adapter, charging cable | CEE BLUE 16A | 1 | 61447826836 | Shop at ECS Tuning | |||||
| Singapore | ||||||||||
| 13 | Adapter, charging cable | IT CEE BLUE 16A | 1 | 61447826833 | Shop at ECS Tuning | |||||
| for Norway | ||||||||||
| 13 | Adapter, charging cable | CEE BLUE 16A | 1 | 61448490522 | Shop at ECS Tuning | |||||
| for Austria, Australia, Belgium, Bosnia Herzegovina, Brazil, Bulgaria, Cambodia, Denmark, Estonia, Finland, France, French Guiana, French Polynesia, Georgia, Germany, Greece, Hungary, Iraq, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malaysia, Mongolia, Northern Cyprus, Norway, Poland, Portugal, Romania, South Korea, Spain, Sri Lanka, St. Martin, Sweden, Switzerland, Tahiti, Thailand, Tunisia, Turkey, UAE Abu Dhabi, Ukraine, United Kingdom, Uzbekistan, Saudi Arabia |
||||||||||
| 14 | Adapter, charging cable | IT CEE RED 16A | 1 | 61447826834 | Shop at ECS Tuning | |||||
| for Norway | ||||||||||
| For vehicles with Charge socket, export for Armenia, Austria, Australia, Belarus, Belgium, Bosnia Herzegovina, Brazil, Bulgaria, Cambodia, Czech Republic, Denmark, Estonia, Finland, France, French Guiana, French Polynesia, Georgian, Germany, Greece, Hungary, Iraq, Ireland, Italy, Kazakhstan, Kyrgyzstan, Latvia, Lithuania, Luxembourg, Malaysia, Mongolia, Netherlands, Northern Cyprus, Norway, Poland, Portugal, Romania, Russia, Spain, St. Martin, Sweden, Switzerland, Tahiti, Thailand, Tunisia, Turkey, Ukraine, United Kingdom |
S8BKA=No |
|||||||||
| 14 | Adapter, charging cable | CEE RED 16A | 1 | 61448490523 | Shop at ECS Tuning | |||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 15 | Adapter, charging cable | CEE RED 32A | 1 | 61447826831 | Shop at ECS Tuning | |||||
| for Austria, Australia, Belgium, Bosnia Herzegovina, Brazil, Bulgaria, Cambodia, Denmark, Estonia, Finland, France, French Guiana, French Polynesia, Georgia, Germany, Greece, Hungary, Iraq, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malaysia, Mongolia, Northern Cyprus, Norway, Poland, Portugal, Romania, South Korea, Spain, Sri Lanka, St. Martin, Sweden, Switzerland, Tahiti, Thailand, Tunisia, Turkey, UAE Abu Dhabi, Ukraine, United Kingdom, Uzbekistan |
||||||||||
| For vehicles with National version Korea and National version japan and Charge socket, export |
L802A=No L807A=No S8BKA=Yes |
|||||||||
| 16 | Adapter, charging cable | NEMA 6-20 | 1 | 61448490524 | Shop at ECS Tuning | |||||
| for Canada, Dominican Republic, El Salvador, Haiti, Honduras, Puerto Rico, United States of America |
||||||||||
| 17 | Adapter, charging cable | NEMA 14-50 | 1 | 61448490525 | Shop at ECS Tuning | |||||
| for Canada, Dominican Republic, El Salvador, Guatemala, Haiti, Honduras, Mexico, Puerto Rico, United States of America |
||||||||||
| 18 | Wall bracket for flexible fast charger | 1 | 61905A13A62 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
