MPP aerodynamics accessory parts - F70 for BMW 2 Series F74 Gran Coupé 220 (2025)

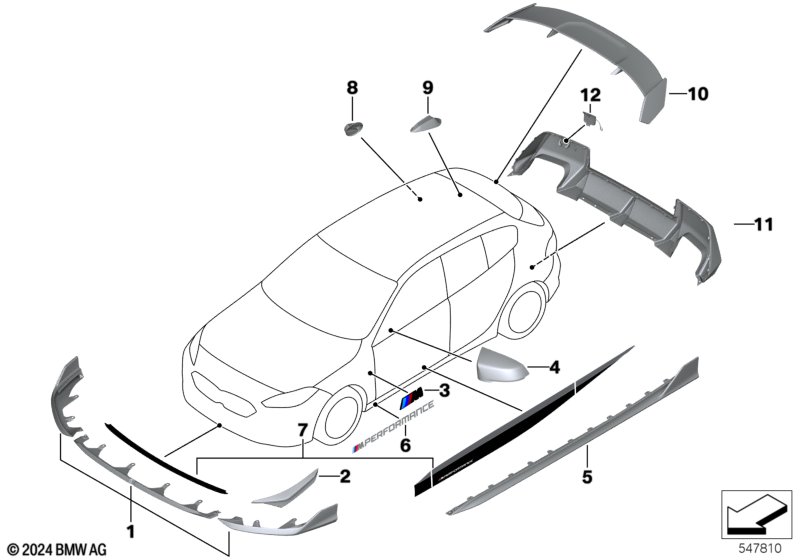

This MPP aerodynamics accessory parts - F70 technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Frontaufsatz Schwarz Mitte | M PERFORMANCE | 1 | 51115A93220 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Front splitter, black, left | M PERFORMANCE | 1 | 51115A93221 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Front splitter, black, right | M PERFORMANCE | 1 | 51115A93222 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Betafill 217 | 300ML | 1 | 83195B34BD7 | Shop at ECS Tuning | |||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| -- | Spoiler edge | MPA | 1 | 51117885770 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and M SPORT EXTERIEURUMFAENGE |
S5AUA=No S9T1A=Yes |
|||||||||
| 02 | Aero Flick left | M PERFORMANCE | 1 | 51115B3A415 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Aero Flick right | M PERFORMANCE | 1 | 51115B3A416 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| 03 | M logos side high-gloss black | M PERFORMANCE | 1 | 51145A4B373 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 04 | Aussenspiegelkappe Carbon links RHD | 1 | 51165A89199 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Supporting ring left | SHADOW-LINE MPA | 1 | 51165A6ABB3 | Shop at ECS Tuning | |||||
| 04 | Aussenspiegelkappe Carbon rechts RHD | 1 | 51165A891A0 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Supporting ring right | SHADOW-LINE MPA | 1 | 51165A6ABB4 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE Only in conjunction with item 6 or item 7 |
S9T1A=Yes |
|||||||||
| 05 | Schwellereinsatz schwarz hochglanz li | M PERFORMANCE | 1 | 51195B38F93 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Expanding rivet, black | BLACK | 8 | 51777171004 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Schwellereinsatz schwarz hochglanz re | M PERFORMANCE | 1 | 51195B38F94 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Expanding rivet, black | BLACK | 8 | 51777171004 | $0.38 | Shop at ECS Tuning | ||||
| -- | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| 08 | Tank cap, cap, carbon | M PERFORMANCE | 1 | 16112472988 | Shop at ECS Tuning | |||||
| 09 | Antenna cover aramide | M PERFORMANCE | 1 | 65205A59AD9 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 220 MPP aerodynamics accessory parts - F70?
- This technical diagram illustrates the MPP aerodynamics accessory parts - F70 within the Retrofitting / conversion / accessories group for the 2 Series F74 Gran Coupé 220 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Frontaufsatz Schwarz Mitte (Part #51115A93220).
- Which models use the hardware listed in this MPP aerodynamics accessory parts - F70?
- The hardware and components featured in the MPP aerodynamics accessory parts - F70 are specific to the 2 Series F74 Gran Coupé 220 produced during 2025. These technical specifications ensure that parts like the Frontaufsatz Schwarz Mitte (51115A93220) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MPP aerodynamics accessory parts - F70 assembly?
- Each item in the MPP aerodynamics accessory parts - F70 corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 220, you can identify the Frontaufsatz Schwarz Mitte by locating its position on the schematic, which then links to the official BMW part number 51115A93220 for the Retrofitting / conversion / accessories section.
