Retrofit, exterior trim, Red Label for BMW XM G09 XM (2025)

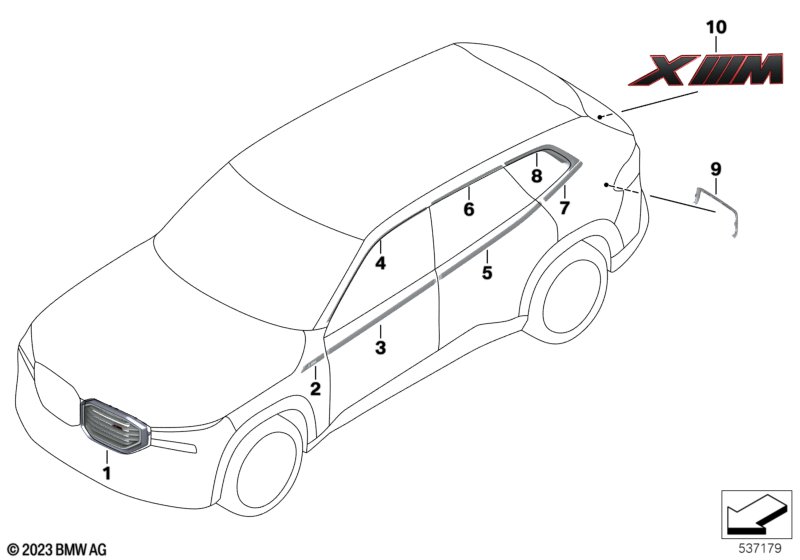

This Retrofit, exterior trim, Red Label technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille, front, left | TORONTO RED | 1 | 51135A834D1 | Shop at ECS Tuning | |||||
| 01 | Grille, front, right | TORONTO RED | 1 | 51135A834D2 | Shop at ECS Tuning | |||||
| 02 | Molding, side panel, front left | TORONTO ROT | 1 | 51135A2BCA5 | Shop at ECS Tuning | |||||
| 02 | Molding, side panel, front right | TORONTO ROT | 1 | 51135A2BCA6 | Shop at ECS Tuning | |||||
| 03 | Decorative strip for door, front, left | TORONTO ROT | 1 | 51135A2BC71 | Shop at ECS Tuning | |||||
| 03 | Decorative strip for door, front, right | TORONTO ROT | 1 | 51135A2BC72 | Shop at ECS Tuning | |||||
| 04 | Window frame cover, front left door | TORONTO ROT | 1 | 51335A2BC91 | Shop at ECS Tuning | |||||
| 04 | Window frame cover, front right door | TORONTO ROT | 1 | 51335A2BC92 | Shop at ECS Tuning | |||||
| 05 | Decorative strip for door, rear, left | TORONTO ROT | 1 | 51135A2BC75 | Shop at ECS Tuning | |||||
| 05 | Decorative strip for door, rear, right | TORONTO ROT | 1 | 51135A2BC76 | Shop at ECS Tuning | |||||
| 06 | Window frame cover, rear left door | TORONTO ROT | 1 | 51355A2BC95 | Shop at ECS Tuning | |||||
| 06 | Cover, window frame, right rear door | TORONTO ROT | 1 | 51355A2BC96 | Shop at ECS Tuning | |||||
| 07 | Molding, side frame, rear left | TORONTO ROT | 1 | 51135A2BC81 | Shop at ECS Tuning | |||||
| 07 | Molding, side frame, rear right | TORONTO ROT | 1 | 51135A2BC82 | Shop at ECS Tuning | |||||
| 08 | Finisher, side window, rear left | TORONTO ROT | 1 | 51375A2BCA1 | Shop at ECS Tuning | |||||
| 08 | Finisher, side window, rear right | TORONTO ROT | 1 | 51375A2BCA2 | Shop at ECS Tuning | |||||
| 09 | Trim strip bumper rear left | TORONTO RED | 1 | 51125A834D3 | Shop at ECS Tuning | |||||
| 09 | Trim strip bumper rear right | TORONTO RED | 1 | 51125A834D4 | Shop at ECS Tuning | |||||
| 10 | Label | XM TORONTO ROT | 1 | 51145A0E482 | Shop at ECS Tuning |
