BMW LA wl M Y-spoke 1063M-20"/21" for BMW 4 Series G82 M4 Coupé M4 (2024)
This BMW LA wl M Y-spoke 1063M-20"/21" technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display |
L807A=No L8AAA=No S2VBA=Yes |
||||||||
| Standard tires without emergency running properties Mixed tyres Front axle 285/30ZR20 99Y XL Rear axle 295/25ZR21 96Y XL Michelin Pilot Sport 4S Only in conjunction with wheel arch trim! See installation instructions 5A29CD2! Foil set and spats for the wheel and rim cover for G80, G82 and G83 in conjunction with 20"/21" wheel/tire combination! |
||||||||||

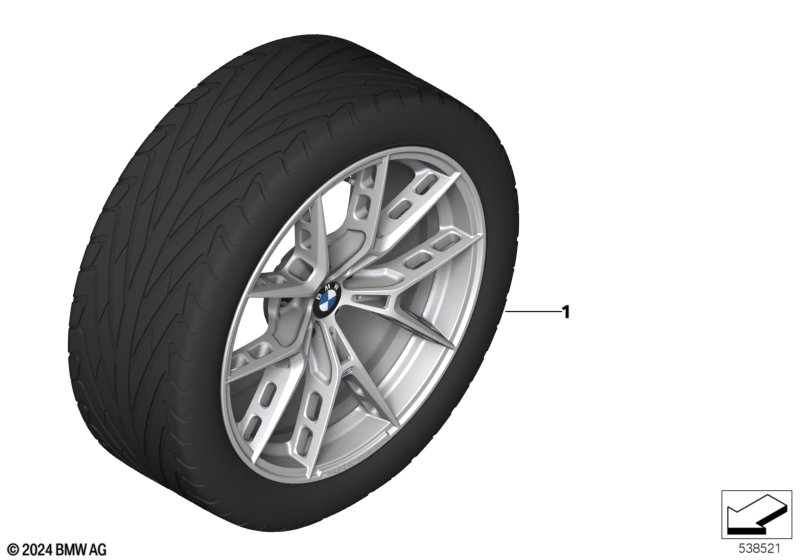

| 01 | RDC Compl. alloy wheel set summer | M PERFORMANCE | 1 | 36115B442F4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of spacers rear primed | M/ AG | 1 | 51779850249 | Shop at ECS Tuning | |||||
| -- | Wheel cover | M PERFORMANCE | 1 | 51145A26CA8 | Shop at ECS Tuning | |||||
