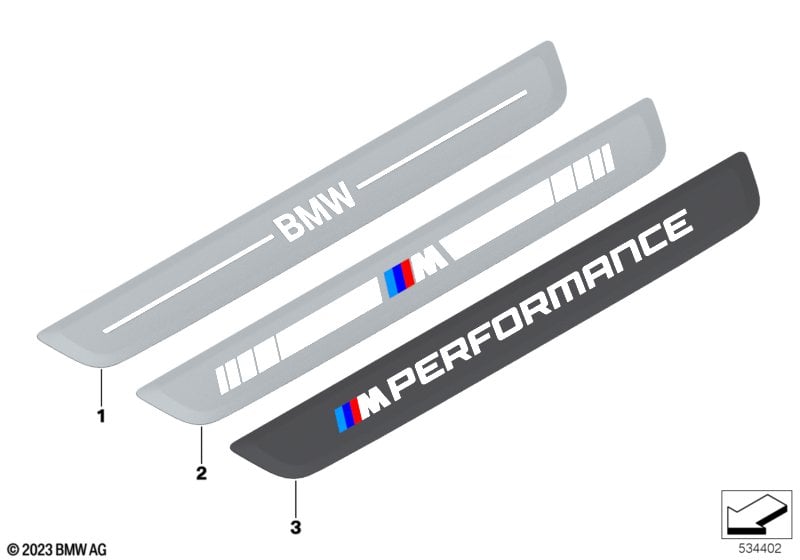

Universal entry sills for BMW 5 Series G60 Sedan 520d (2025)
This Universal entry sills technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front entrance cover | 2 | 51478738032 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cleanser R2 | 500ML | 1 | 83190417324 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Template | 2 | 01295A37F85 | Shop at ECS Tuning | ||||||
| 02 | Front entrance cover | M | 2 | 51479464399 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cleanser R2 | 500ML | 1 | 83190417324 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Template | 2 | 01295A37F85 | Shop at ECS Tuning | ||||||
| 03 | Sill trim carbon | M PERFORMANCE | 2 | 51475A6CBC3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cleanser R2 | 500ML | 1 | 83190417324 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
