Retrofit, leather gearshift knob for BMW 3 Series E46 318i (2003)

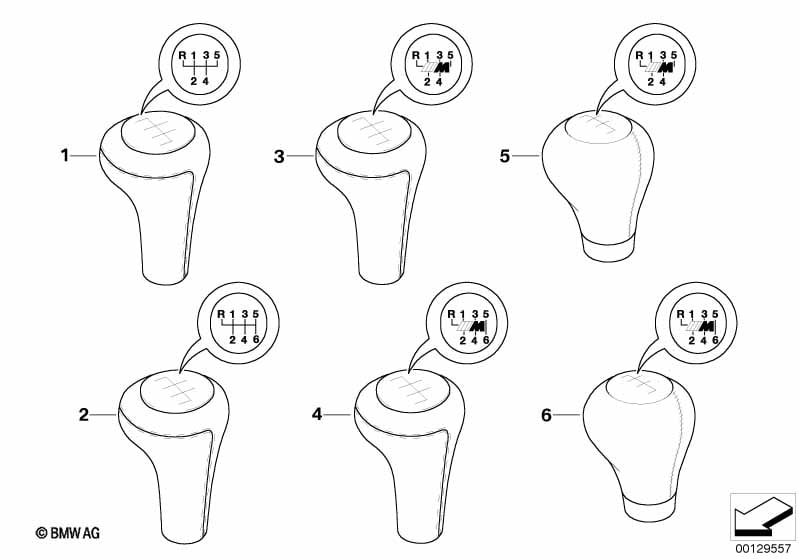

This Retrofit, leather gearshift knob technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Installation time approx. 0.25 hours, which may differ depending on the condition of the vehicle and the equipment in it. |
|||||||||
| Retrofit, aluminum decor strips, pillars HG 51 |
||||||||||
| 01 | Gearshift knob, leather/5-speed/ring | CHROM MATT | 1 | 25117831685 | $82.50 | ENDED | Shop at ECS Tuning | |||
| Aluminium gearshift knob see Image Text Unit ACCESSORIES according to choice Accessories catalog |
||||||||||
| Retrofitting, int.mouldings, matt chrome HG 51 |
||||||||||
| 01 | Gearshift knob, leather/5-speed/ring | CHROM MATT | 1 | 25117831685 | $82.50 | ENDED | Shop at ECS Tuning | |||
| Retrofit, Titan-Line Interieur HG 51 |
||||||||||
| 01 | Gearshift knob, leather/5-speed/ring | TITAN | 1 | 25117503100 | $84.50 | ENDED | Shop at ECS Tuning | |||
| REFER TO Accessories catalog |
||||||||||
| 02 | Gearshift knob, leather/6-speed | SCHWARZ | 1 | 03/2003 | 25117523817 | $94.60 | Shop at ECS Tuning | |||
| Retrofit, aluminum decor strips, pillars HG 51 |
||||||||||
| 03 | Gearshift knob,leather/M plaque/5-speed | CHROM-MATT | 1 | 25112229443 | $82.50 | ENDED | Shop at ECS Tuning | |||
| Cover, soft paint HG 51 |
||||||||||
| 03 | Gearshift knob,leather/M plaque/5-speed | SCHWARZ | 1 | 25117503231 | $65.50 | ENDED | Shop at ECS Tuning | |||
| Retrofitting, int.mouldings, matt chrome HG 51 |
||||||||||
| 03 | Gearshift knob,leather/M plaque/5-speed | CHROM-MATT | 1 | 25112229443 | $82.50 | ENDED | Shop at ECS Tuning | |||
| Important! greater switching forces |
||||||||||
| 05 | Gearshift knob,leather/M plaque/5-speed | SCHWARZ | 1 | 25117896031 | $80.50 | Shop at ECS Tuning | ||||
| Heavy version | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Retrofit, leather gearshift knob?
- This technical diagram illustrates the Retrofit, leather gearshift knob within the Retrofitting / conversion / accessories group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Gearshift knob, leather/5-speed/ring (Part #25117831685).
- Which models use the hardware listed in this Retrofit, leather gearshift knob?
- The hardware and components featured in the Retrofit, leather gearshift knob are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the Gearshift knob, leather/5-speed/ring (25117831685) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, leather gearshift knob assembly?
- Each item in the Retrofit, leather gearshift knob corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Gearshift knob, leather/5-speed/ring by locating its position on the schematic, which then links to the official BMW part number 25117831685 for the Retrofitting / conversion / accessories section.
