Railing carrier for BMW 3 Series E46 330d (2004)

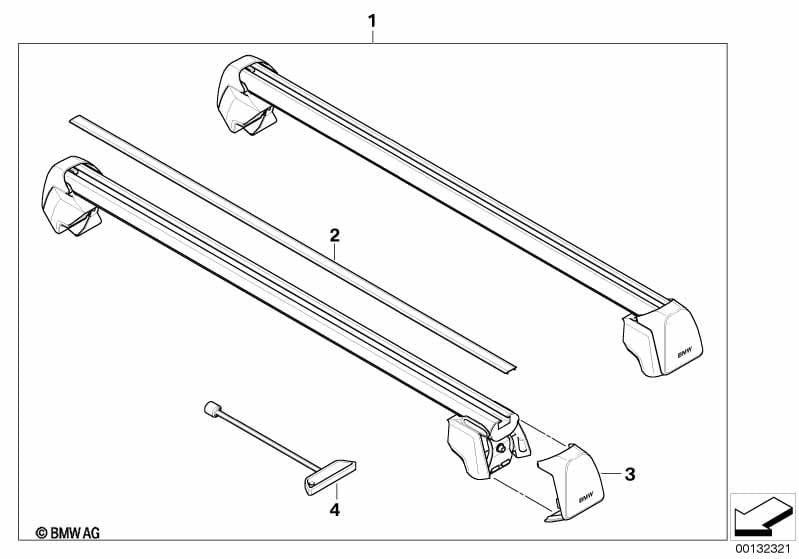

This Railing carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Profile cover,top | 2 | 82129413122 | $7.50 | ENDED | Shop at ECS Tuning | ||||

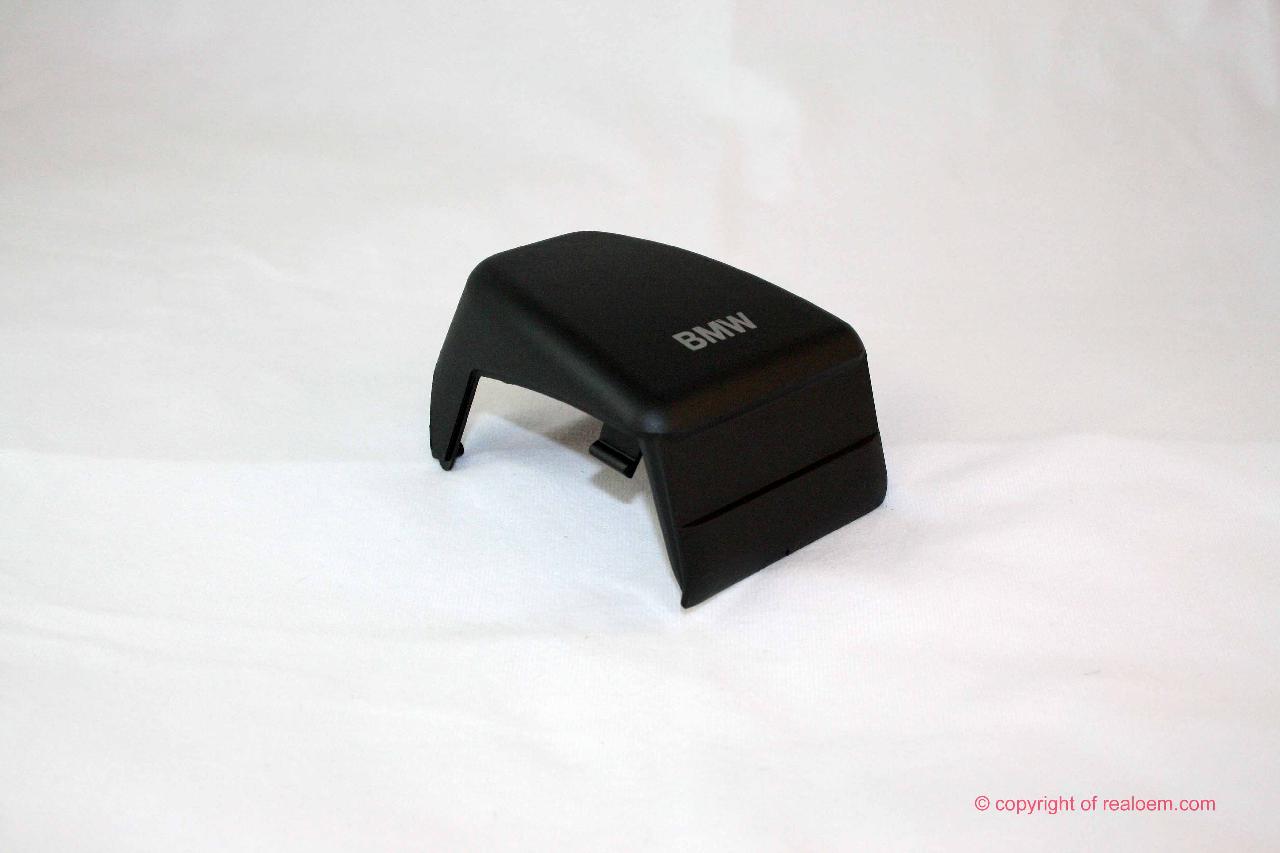

| 03 | Covering cap | E83 / E61 | 4 | 82790306965 | $10.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Key (Code) | 1 | 82799405012 | $11.75 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Railing carrier?
- This technical diagram illustrates the Railing carrier within the Retrofitting / conversion / accessories group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Profile cover,top (Part #82129413122).
- Which models use the hardware listed in this Railing carrier?
- The hardware and components featured in the Railing carrier are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Profile cover,top (82129413122) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Railing carrier assembly?
- Each item in the Railing carrier corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Profile cover,top by locating its position on the schematic, which then links to the official BMW part number 82129413122 for the Retrofitting / conversion / accessories section.
