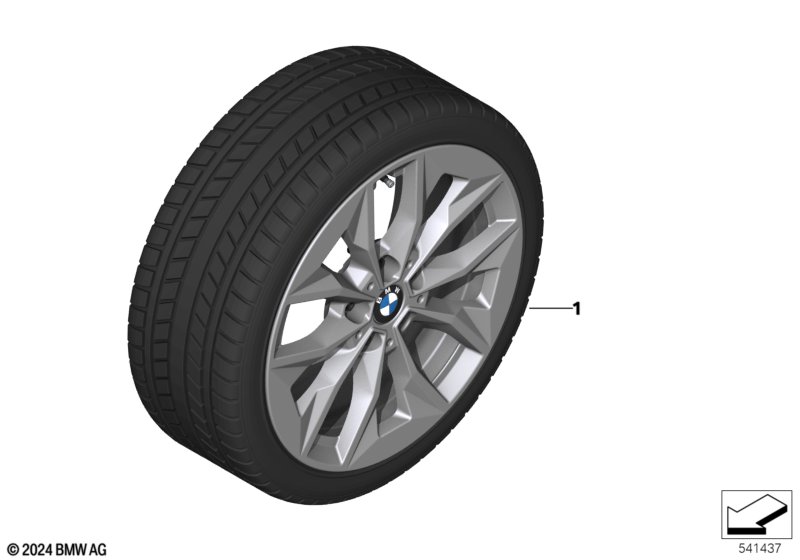

Winter wheel with tire Y-spoke 971 - 17" for BMW 1 Series F70 118d (2025)
This Winter wheel with tire Y-spoke 971 - 17" technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display and M SPORT BRAKE, DARK BLUE METALLIC and M SPORT BRAKE, RED HIGH-GLOSS and M Compound brake, gray high-gloss |
L807A=No L8AAA=No S2VBA=Yes S3M1A=No S3M2A=No S3M8A=No |
||||||||
| Standard tires without emergency running properties Goodyear Ultra Grip Performance 3 |
||||||||||
| 01 | TPM wheel w/tire winter Lightning Gray | 205/55R17 95H | 4 | 36115B4E917 | Shop at ECS Tuning | |||||
