Engine Suspension / Damper for BMW 3 Series E21 323i (1978)

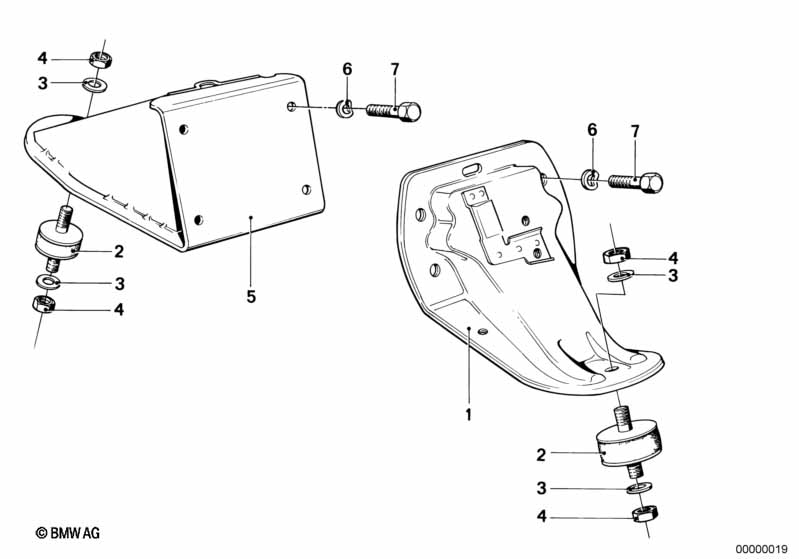

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 08/1978 | 11811246417 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 08/1978 | 11811132323 | $55.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Supporting bracket right | 1 | 08/1978 | 11811246419 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X16-10.9-PHR | 8 | 08/1978 | 07119913612 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Engine Suspension / Damper?
- This technical diagram illustrates the Engine Suspension / Damper within the Engine group for the 3 Series E21 323i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket left (Part #11811246417).
- Which models use the hardware listed in this Engine Suspension / Damper?
- The hardware and components featured in the Engine Suspension / Damper are specific to the 3 Series E21 323i produced during 1978. These technical specifications ensure that parts like the Supporting bracket left (11811246417) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension / Damper assembly?
- Each item in the Engine Suspension / Damper corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Supporting bracket left by locating its position on the schematic, which then links to the official BMW part number 11811246417 for the Engine section.
