Engine Suspension / Damper for BMW 3 Series E21 318 (1977)

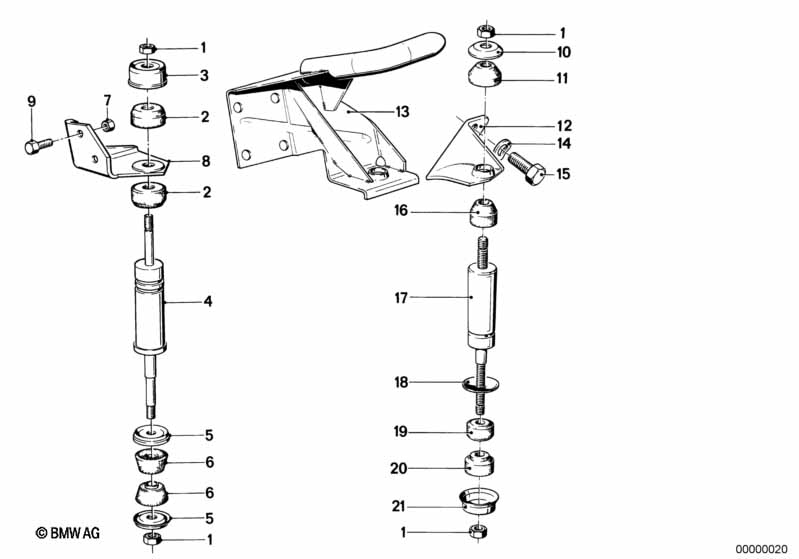

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M6-8-ZNS3 | 2 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 01 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Ring | 2 | 08/1978 | 11811245570 | $4.60 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 08/1978 | 11811245572 | $1.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Engine damper | 1 | 08/1978 | 11811245574 | $103.86 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | 2 | 08/1978 | 11811245571 | $4.87 | ENDED | Shop at ECS Tuning | |||
| 06 | Ring | 2 | 08/1978 | 11811245569 | $4.60 | ENDED | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 08/1978 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 08/1978 | 11811245859 | $7.59 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X20-ZNNIV SI | 2 | 08/1978 | 07119903039 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
