Engine Suspension / Damper for BMW 6 Series E24 630CSi (1977)

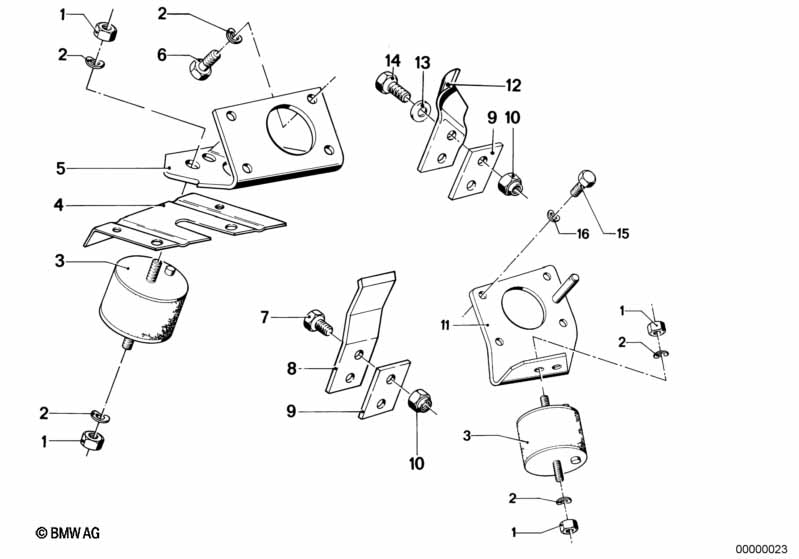

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M10-8-ZNS | 4 | 09/1982 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 02 | Wave washer | B10-ZNS3 | 8 | 09/1982 | 07119904463 | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | 2 | 09/1982 | 11811132322 | $41.84 | Shop at ECS Tuning | ||||
| 04 | Heat resistant plate | 1 | 09/1982 | 11811245674 | ENDED | Shop at ECS Tuning | ||||
| 05 | Supporting bracket right | 1 | 09/1982 | 11811103773 | $36.05 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X18-8.8-ZNS3 | 2 | 09/1982 | 07119904033 | $0.65 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M10X22 | 2 | 09/1982 | 07119913872 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X30 | 4 | 09/1982 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 08 | Stopper | 4 | 09/1982 | 11811245478 | ENDED | Shop at ECS Tuning | ||||
| 09 | Plate | 2 | 09/1982 | 11811245363 | $3.91 | ENDED | Shop at ECS Tuning | |||
| 10 | Self-locking hex nut | M8-8-ZNNI SI | 4 | 09/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 11 | Supporting bracket left | 1 | 09/1982 | 11811105693 | $58.39 | ENDED | Shop at ECS Tuning | |||
| 15 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 09/1982 | 07119904040 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | 4 | 09/1982 | 07119904115 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi Engine Suspension / Damper?
- This technical diagram illustrates the Engine Suspension / Damper within the Engine group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07119915558).
- Which models use the hardware listed in this Engine Suspension / Damper?
- The hardware and components featured in the Engine Suspension / Damper are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the Hex nut (07119915558) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension / Damper assembly?
- Each item in the Engine Suspension / Damper corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07119915558 for the Engine section.
