Engine Suspension / Damper for BMW 7 Series E23 733i (1982)

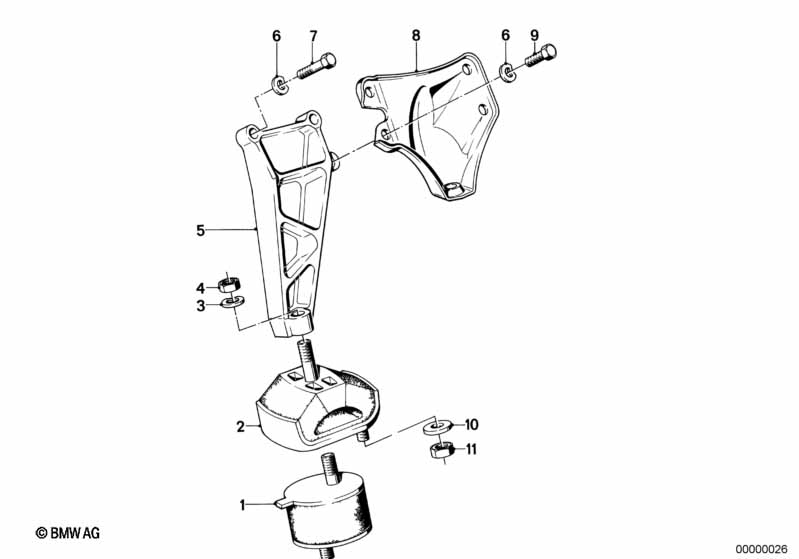

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Rubber mounting left | 1 | 09/1979 | 11811175141 | $43.76 | Shop at ECS Tuning | ||||
| 02 | Rubber mounting left | 1 | 09/1979 | 11811175141 | $43.76 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B10-ZNS3 | 1 | 09/1979 | 07119904463 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B10-ZNS3 | 1 | 09/1979 | 07119904463 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10-8-ZNS | 1 | 09/1979 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 04 | Hex nut | M10-8-ZNS | 1 | 09/1979 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 05 | Supporting bracket left | 1 | 09/1979 | 11811175151 | $33.51 | ENDED | Shop at ECS Tuning | |||
| 05 | Supporting bracket left | 1 | 09/1979 | 11811175151 | $33.51 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 09/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 09/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X40-ZNNIV SI | 4 | 09/1979 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X40-ZNNIV SI | 4 | 09/1979 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 08 | Supporting plate | 1 | 09/1979 | 11811175304 | $22.21 | ENDED | Shop at ECS Tuning | |||
| 08 | Supporting plate | 1 | 09/1979 | 11811175304 | $22.21 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X20-ZNNIV SI | 2 | 09/1979 | 07119903039 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X20-ZNNIV SI | 2 | 09/1979 | 07119903039 | Shop at ECS Tuning | ||||
| 10 | Washer | A10,5X22 | 1 | 09/1979 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 10 | Washer | A10,5X22 | 1 | 09/1979 | 31111114348 | $0.67 | Shop at ECS Tuning | |||
| 11 | Self-locking hex nut | M10 | 1 | 09/1979 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 11 | Self-locking hex nut | M10 | 1 | 09/1979 | 07129964672 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
