Engine Suspension / Damper for BMW 3 Series E30 318i (1987)

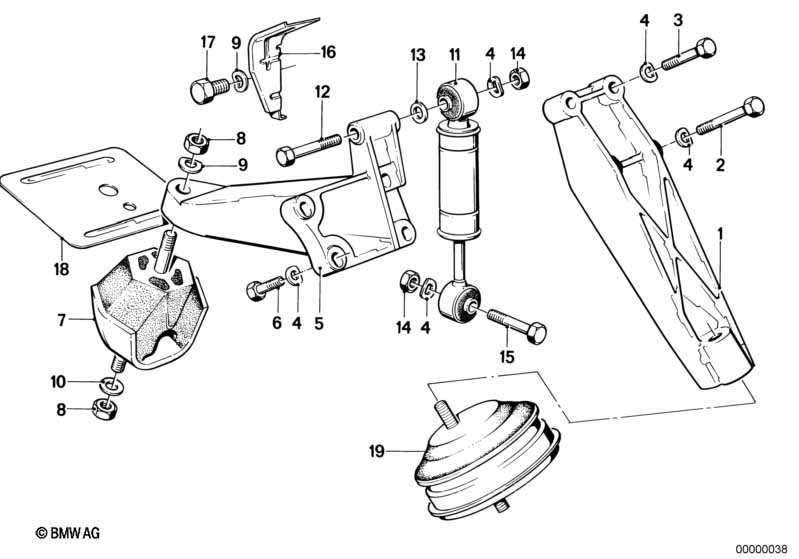

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 11811127101 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X60-ZNNIV SI | 2 | 07119905974 | Shop at ECS Tuning | |||||
| 04 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Supporting bracket right | 1 | 11811176514 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X25 | 4 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 11811129286 | $53.32 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Washer | A10,5X22 | 2 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 11 | Engine damper | 2 | 11811127569 | $151.35 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4 | 2 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-8-ZNS3 | 2 | 06/1988 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Heat resistant plate | 1 | 11811132780 | ENDED | Shop at ECS Tuning |
