Engine Suspension / Damper for BMW 3 Series E30 325i (1991)

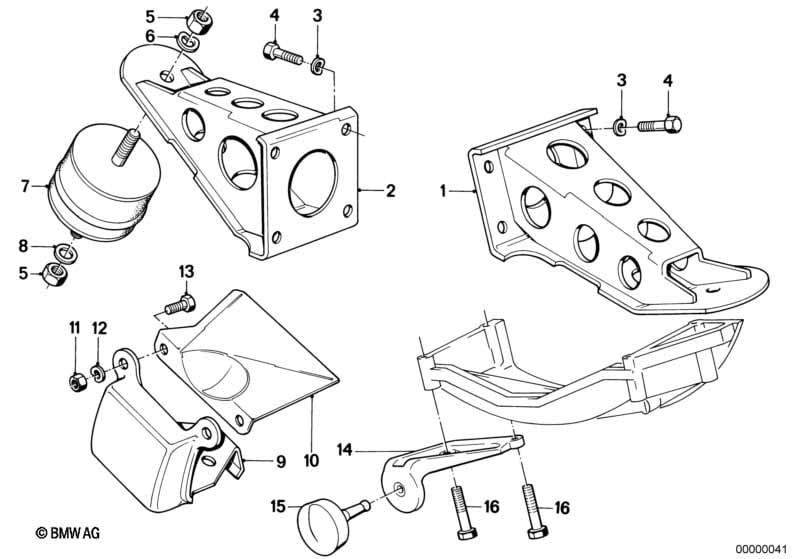

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Supporting bracket left | ALUMINIUM | 1 | 11811176565 | $32.81 | Shop at ECS Tuning | ||||
| 02 | Supporting bracket right | ALUMINIUM | 1 | 11811176564 | $32.81 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B8 | 8 | 01/1993 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B10-ZNS | 2 | 01/1993 | 07119932122 | $0.38 | ENDED | Shop at ECS Tuning | ||
| 07 | Rubber Mounting | 2 | 11811132323 | $55.16 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 10,5 | 2 | 01/1993 | 07119936436 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 09 | Hood catch | 2 | 11811128510 | $8.40 | ENDED | Shop at ECS Tuning | ||||
