Engine block for BMW 5 Series E12 528i (1979)

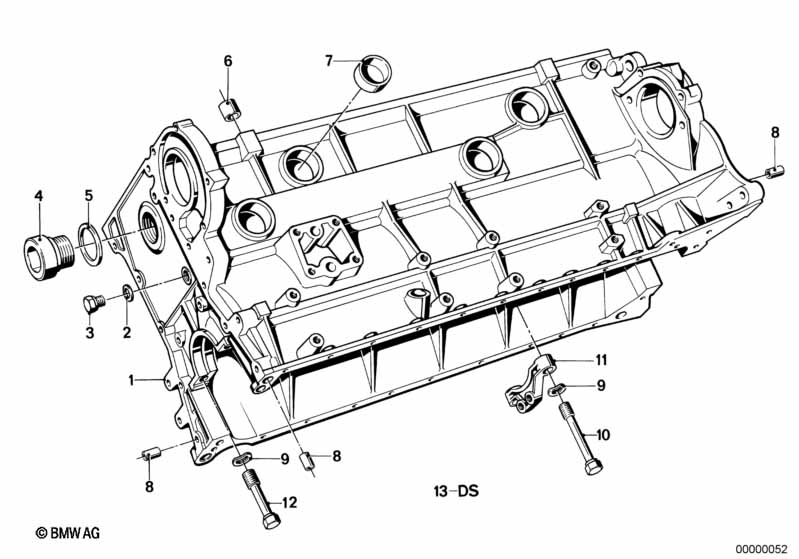

This Engine block technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | 1 | 11111271523 | $1696.32 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | A14X18-AL | 3 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Screw plug | AM14X1,5 | 3 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=45MM | 6 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=36MM | 3 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 08 | Dowel | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M10X95 | 2 | 07119912695 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 11111256355 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M10X80 | X | 07119912680 | $1.89 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Engine block?
- This technical diagram illustrates the Engine block within the Engine group for the 5 Series E12 528i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Engine block with piston (Part #11111271523).
- Which models use the hardware listed in this Engine block?
- The hardware and components featured in the Engine block are specific to the 5 Series E12 528i produced during 1979. These technical specifications ensure that parts like the Engine block with piston (11111271523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine block assembly?
- Each item in the Engine block corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Engine block with piston by locating its position on the schematic, which then links to the official BMW part number 11111271523 for the Engine section.
