Engine block for BMW 5 Series E28 520i (1987)

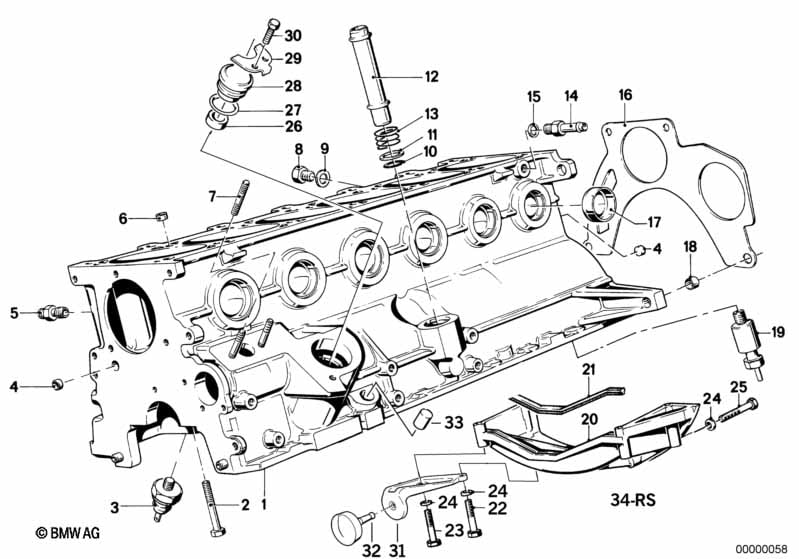

This Engine block technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. engine block with pistons | 1 | 09/1983 | 11111288369 | ENDED | Shop at ECS Tuning | ||||
| 01 | Exch. engine block with pistons | 1 | 09/1983 | 11111714831 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Low compression engine and Low compression engine |
S858A=Yes =Yes |
|||||||||
| 01 | Exch. engine block with pistons | 1 | 09/1983 | 11111289947 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
|||||||||
| 01 | Exch. engine block with pistons | 1 | 09/1983 | 11111705399 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X75 | X | 09/1983 | 11111735525 | $0.93 | Shop at ECS Tuning | |||
| 02 | Hex bolt | M10X75 | X | 09/1983 | 11111735525 | $0.93 | Shop at ECS Tuning | |||
| 03 | Oil pressure switch | M12X1,5 | 1 | 09/1983 | 12618611273 | Shop at ECS Tuning | ||||
| 03 | Oil pressure switch | M12X1.5 | 1 | 09/1983 | 61311243414 | $13.31 | +core | Shop at ECS Tuning | ||
| 04 | Plug | D=12,0MM | 2 | 09/1983 | 11111268539 | $0.58 | Shop at ECS Tuning | |||
| 04 | Plug | D=12,0MM | 2 | 09/1983 | 11111268539 | $0.58 | Shop at ECS Tuning | |||
| 05 | Threaded pipe joint | M20X1,5 | 1 | 09/1983 | 11112140435 | $8.67 | Shop at ECS Tuning | |||
| 05 | Threaded pipe joint | M20X1,5 | 1 | 09/1983 | 11112140435 | $8.67 | Shop at ECS Tuning | |||
| 06 | Dowel | D=12,5MM | 2 | 09/1983 | 11121726241 | $1.62 | Shop at ECS Tuning | |||
| 06 | Dowel | D=12,5MM | 2 | 09/1983 | 11121726241 | $1.62 | Shop at ECS Tuning | |||
| 07 | Stud bolt | M8X50-ZNS | 2 | 09/1983 | 07129901917 | $0.61 | Shop at ECS Tuning | |||
| 07 | Stud bolt | M8X50-ZNS | 2 | 09/1983 | 07129901917 | $0.61 | Shop at ECS Tuning | |||
| 08 | Screw plug | AM14X1,5 | 1 | 09/1983 | 07119909704 | Shop at ECS Tuning | ||||
| 08 | Screw plug | AM14X1,5 | 1 | 09/1983 | 07119909704 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X18-AL | 1 | 09/1983 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 09 | Gasket ring | A14X18-AL | 1 | 09/1983 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 10 | O-ring | 2 | 09/1983 | 11151714390 | $1.58 | Shop at ECS Tuning | ||||
| 10 | O-ring | 2 | 09/1983 | 11151714390 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Washer | 2 | 09/1983 | 11151280937 | $1.75 | Shop at ECS Tuning | ||||
| 11 | Washer | 2 | 09/1983 | 11151280937 | $1.75 | Shop at ECS Tuning | ||||
| 12 | Pipe | 1 | 09/1983 | 11151280938 | $8.13 | Shop at ECS Tuning | ||||
| 12 | Pipe | 1 | 09/1983 | 11151280938 | $8.13 | Shop at ECS Tuning | ||||
| 13 | Compression spring | 1 | 09/1983 | 11151265346 | $4.42 | Shop at ECS Tuning | ||||
| 13 | Compression spring | 1 | 09/1983 | 11151265346 | $4.42 | Shop at ECS Tuning | ||||
| 14 | Connector | M12 | 1 | 09/1983 | 11121740396 | $6.85 | Shop at ECS Tuning | |||
| 14 | Connector | M12 | 1 | 09/1983 | 11121740396 | $6.85 | Shop at ECS Tuning | |||
| 15 | Gasket ring | A12X15,5 AL | 1 | 09/1983 | 07119963130 | $0.09 | Shop at ECS Tuning | |||
| 15 | Gasket ring | A12X15,5 AL | 1 | 09/1983 | 07119963130 | $0.09 | Shop at ECS Tuning | |||
| 16 | Covering plate | 1 | 09/1983 | 11141280826 | $11.15 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering plate | 1 | 09/1983 | 11141280826 | $11.15 | ENDED | Shop at ECS Tuning | |||
| 17 | Cover lid | D=45MM | X | 09/1983 | 11111714712 | $3.32 | Shop at ECS Tuning | |||
| 17 | Cover lid | D=45MM | X | 09/1983 | 11111714712 | $3.32 | Shop at ECS Tuning | |||
| 18 | Dowel | D=14,5MM | 2 | 09/1983 | 11111743118 | $1.65 | Shop at ECS Tuning | |||
| 18 | Dowel | D=14,5MM | 2 | 09/1983 | 11111743118 | $1.65 | Shop at ECS Tuning | |||
| 19 | Relief valve | 1 | 09/1983 | 11421271318 | $83.57 | ENDED | Shop at ECS Tuning | |||
| 19 | Relief valve | 1 | 09/1983 | 11421271318 | $83.57 | ENDED | Shop at ECS Tuning | |||
| 20 | Bowl reinforcement | 1 | 09/1983 | 11141286342 | $111.35 | ENDED | Shop at ECS Tuning | |||
| 20 | Bowl reinforcement | 1 | 09/1983 | 11141286342 | $111.35 | ENDED | Shop at ECS Tuning | |||
| 21 | Rubber seal | 305MM | 1 | 09/1983 | 11141287846 | $6.48 | ENDED | Shop at ECS Tuning | ||
| 21 | Rubber seal | 305MM | 1 | 09/1983 | 11141287846 | $6.48 | ENDED | Shop at ECS Tuning | ||
| 22 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 09/1983 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 09/1983 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 22 | Hexagon bolt | M8X65 | 2 | 09/1983 | 07119903018 | Shop at ECS Tuning | ||||
| 22 | Hexagon bolt | M8X65 | 2 | 09/1983 | 07119903018 | Shop at ECS Tuning | ||||
| 23 | Hex bolt | M8X80 | 1 | 09/1983 | 07119912558 | $2.89 | Shop at ECS Tuning | |||
| 23 | Hex bolt | M8X80 | 1 | 09/1983 | 07119912558 | $2.89 | Shop at ECS Tuning | |||
| 24 | Wave washer | 8,4X15-ZNS3 | 4 | 09/1983 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 24 | Wave washer | 8,4X15-ZNS3 | 4 | 09/1983 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 25 | ASA-Bolt | M8X50-8.8-ZNS3 | 8 | 09/1983 | 23001222887 | $1.13 | Shop at ECS Tuning | |||
| 25 | ASA-Bolt | M8X50-8.8-ZNS3 | 8 | 09/1983 | 23001222887 | $1.13 | Shop at ECS Tuning | |||
| 26 | Needle sleeve | 1 | 09/1983 | 11111265180 | Shop at ECS Tuning | |||||
| 26 | Needle sleeve | 1 | 09/1983 | 11111265180 | Shop at ECS Tuning | |||||
| 27 | Gasket ring | 1 | 09/1983 | 12111363190 | $1.59 | ENDED | Shop at ECS Tuning | |||
| 28 | Bearing cover | 1 | 09/1983 | 11411276333 | $38.81 | ENDED | Shop at ECS Tuning | |||
| 29 | Hex bolt | M8X28-ZN | 1 | 09/1983 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | ||
| 29 | Holder | 1 | 09/1983 | 12121364199 | $11.16 | ENDED | Shop at ECS Tuning | |||
| 30 | Hex bolt | M8X28-ZN | 1 | 09/1983 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | ||
| 33 | Cover lid | 1 | 09/1983 | 11111718873 | $1.15 | Shop at ECS Tuning | ||||
| 33 | Cover lid | 1 | 09/1983 | 11111718873 | $1.15 | Shop at ECS Tuning | ||||
| 34 | Gasket Set Engine Block Asbesto Free | 1 | 09/1983 | 11111730875 | $101.69 | ENDED | Shop at ECS Tuning | |||
| 34 | Gasket Set Engine Block Asbesto Free | 1 | 09/1983 | 11111730875 | $101.69 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
