Upper timing case for BMW 5 Series E28 535i (1987)

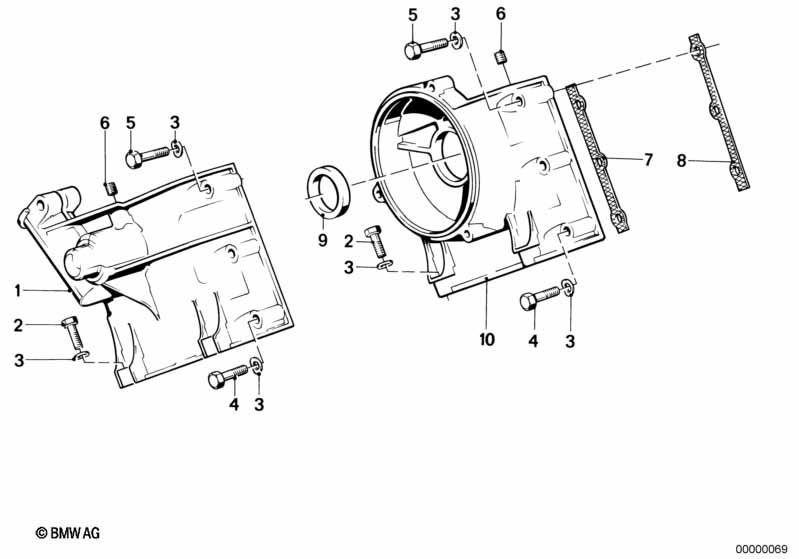

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X35-8.8-ZNS3 | 4 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X40 | 2 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Threaded plug | M6 | 1 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 07 | Gasket left asbesto-free | 1 | 11141726729 | $1.71 | Shop at ECS Tuning | |||||
| 08 | Gasket right asbesto-free | 1 | 11141726727 | $1.71 | Shop at ECS Tuning | |||||
| 09 | Shaft seal | 28X40X7 | 1 | 11141709060 | Shop at ECS Tuning | |||||
| 10 | Timing case cover, top | 1 | 11141277001 | $161.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Upper timing case?
- This technical diagram illustrates the Upper timing case within the Engine group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913589).
- Which models use the hardware listed in this Upper timing case?
- The hardware and components featured in the Upper timing case are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Hex bolt (07119913589) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Upper timing case assembly?
- Each item in the Upper timing case corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913589 for the Engine section.
