Upper timing case for BMW 5 Series E34 535i (1993)

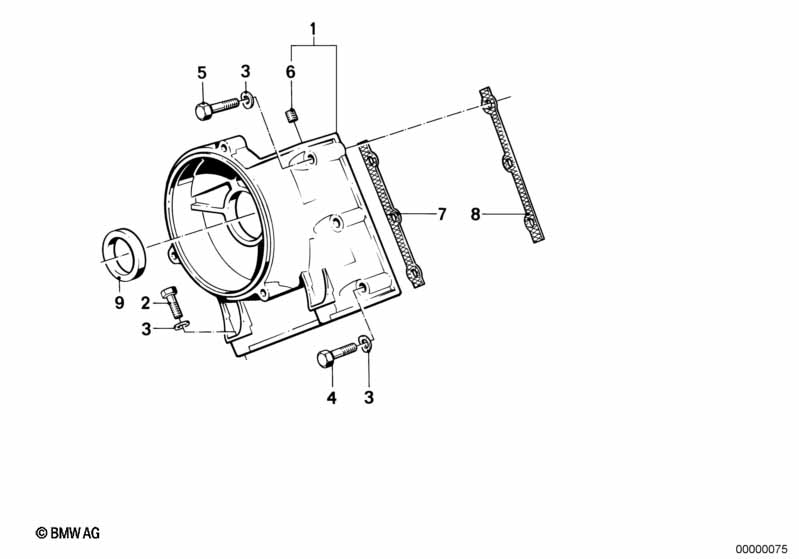

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, top | 1 | 11141277001 | $161.65 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | X | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X35-U1-8.8 | 4 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X40-Z3 | 2 | 07119913951 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Threaded plug | M6 | 2 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 07 | Gasket left asbesto-free | 1 | 11141726729 | $1.71 | Shop at ECS Tuning | |||||
| 08 | Gasket right asbesto-free | 1 | 11141726727 | $1.71 | Shop at ECS Tuning | |||||
| 09 | Shaft seal | 28X40X7 | 1 | 11141709060 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Upper timing case?
- This technical diagram illustrates the Upper timing case within the Engine group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Timing case cover, top (Part #11141277001).
- Which models use the hardware listed in this Upper timing case?
- The hardware and components featured in the Upper timing case are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Timing case cover, top (11141277001) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Upper timing case assembly?
- Each item in the Upper timing case corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Timing case cover, top by locating its position on the schematic, which then links to the official BMW part number 11141277001 for the Engine section.
