Oil pan/oil level indicator for BMW 3 Series E21 323i (1982)

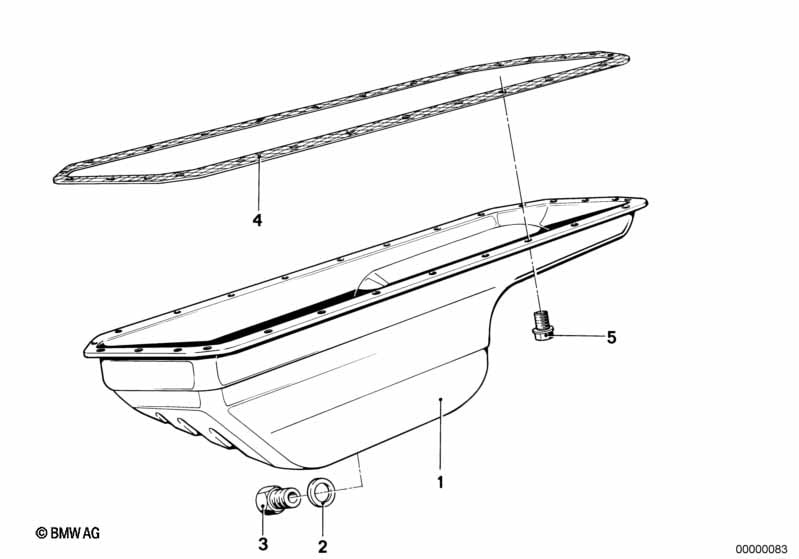

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131278927 | $166.13 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 02 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Screw plug | AM12X1,5 | 1 | 07119909703 | Shop at ECS Tuning | |||||
| 03 | Screw plug | M22X1,5 | 1 | 11131250089 | $5.90 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11131730234 | $18.37 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | X | 07119904524 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131278927).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Oil Pan (11131278927) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131278927 for the Engine section.
