Oil pan/oil level indicator for BMW 6 Series E24 633CSi (1979)

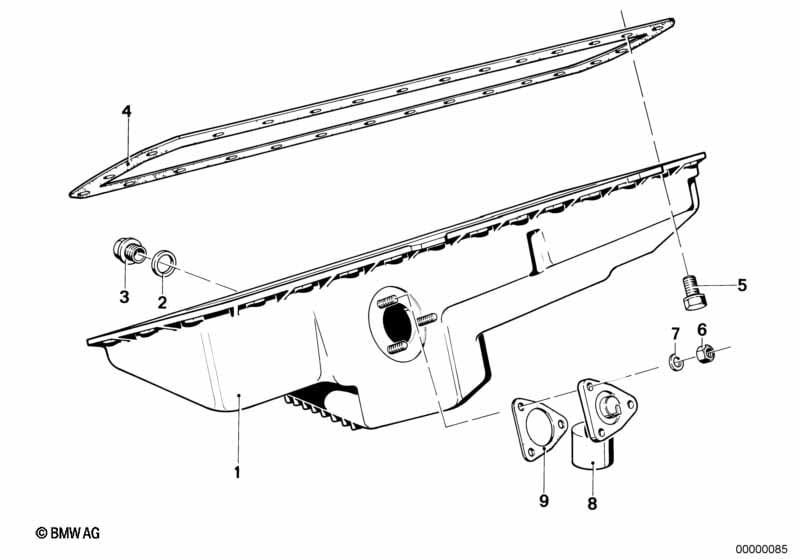

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 09/1982 | 11131263457 | $474.97 | Shop at ECS Tuning | ||||
| 02 | Gasket ring | A12X17-CU | 1 | 09/1982 | 07119963151 | $0.57 | Shop at ECS Tuning | |||
| 02 | Gasket ring | A22X27-AL | 1 | 09/1982 | 07119963355 | $0.36 | Shop at ECS Tuning | |||
| 03 | Screw plug | M22X1,5 | 1 | 09/1982 | 11131250089 | $5.90 | Shop at ECS Tuning | |||
| 03 | Screw plug | M12X16 | 1 | 09/1982 | 11137535106 | $3.68 | Shop at ECS Tuning | |||
| 04 | Gasket Asbestos Free | 1 | 09/1982 | 11131315085 | $18.00 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X20-Z3 | X | 09/1982 | 07119915031 | $0.24 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNS3 | 3 | 09/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 3 | 09/1982 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 07 | Circlip | 8,4 | 3 | 09/1982 | 07119935033 | ENDED | Shop at ECS Tuning | |||
| 08 | Levelling switch oil pan | 1 | 09/1982 | 61311361119 | $90.31 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 09/1982 | 61319065678 | $7.76 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11131263457).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Oil Pan (11131263457) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11131263457 for the Engine section.
