Oil pan/oil level indicator for BMW 3 Series E30 325e (1988)

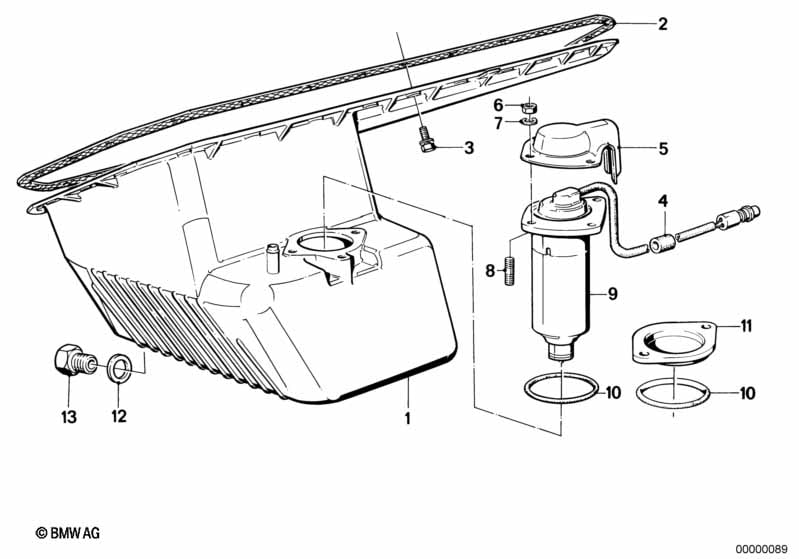

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131720754 | $308.45 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11131730234 | $18.37 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 12611276240 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Covering plate | 1 | 12521276200 | $6.53 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X25-ZN | 3 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Levelling switch | 1 | 09/1987 | 12611722301 | $154.50 | ENDED | Shop at ECS Tuning | |||
| 10 | O-ring | 3X42,3 | 1 | 12611277602 | $2.02 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
